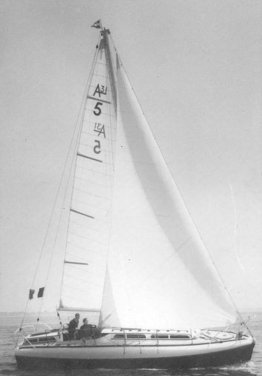

ATALANTA 31 (UK)

ATALANTA 31 (UK)

Beta Marine

Beta Marine

Sailboat Specifications

Definitions
Hull Type: Twin Keel
Rigging Type: Masthead Sloop
LOA: 31.00 ft / 9.45 m
LWL: 27.00 ft / 8.23 m
Beam: 8.00 ft / 2.44 m
Displacement: 8,000.00 lb / 3,629 kg
Ballast: 2,000.00 lb / 907 kg
Max Draft: 7.00 ft / 2.13 m
Min Draft: 2.00 ft / 0.61 m
Construction: Wood ('hot molded' laminate)
First Built: 1956
# Built: 12
Builder: Fairey Marine (UK)
Designer: Uffa Fox

Sailboat Calculations

Definitions
Bal. / Displ.: 25.00
Disp: / Len: 181.45
Comfort Ratio: 27.47
Capsize Screening Formula: 1.60
Hull Speed: 6.96 kn
Pounds/Inch Immersion: 771.79 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

Sailboat Links

Designers: Uffa Fox
Builders: Fairey Marine Ltd
Associations: Atalanta Owners Association
Download Boat Record:

Notes

Twin drop keels each weighing 1000lbs, hydraulically lifted and Lifting rudder.
See ATALANTA 26.
