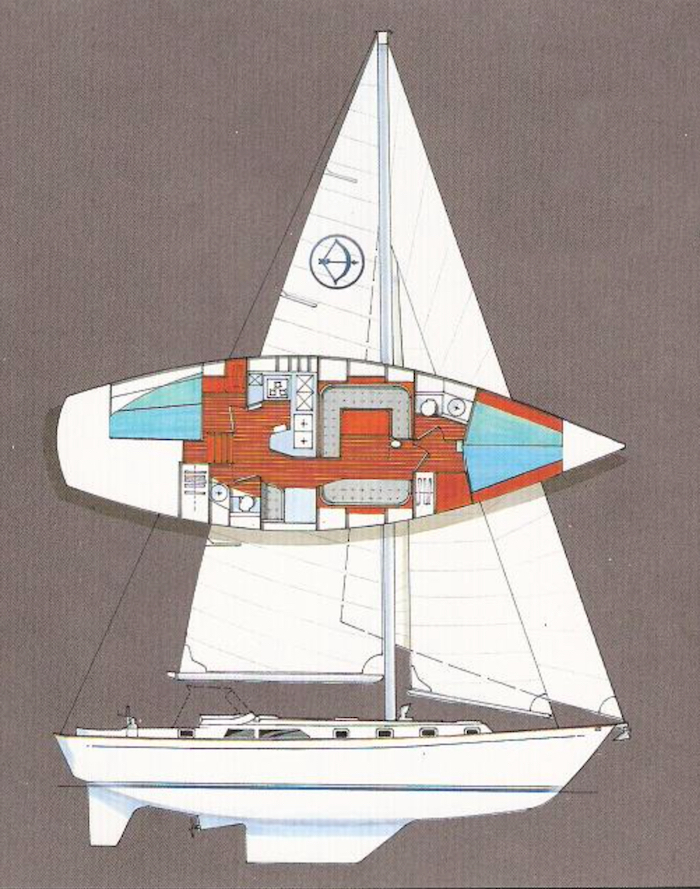

BOWMAN 40 (PAINE)

BOWMAN 40 (PAINE)
BOWMAN 40 (PAINE)

Beta Marine

Beta Marine

Sailboat Specifications

Definitions
Hull Type: Sheel Keel
Rigging Type: Cutter
LOA: 39.92 ft / 12.17 m
LWL: 32.00 ft / 9.75 m
S.A. (reported): 743.00 ft² / 69.03 m²
Beam: 12.58 ft / 3.83 m
Displacement: 19,000.00 lb / 8,618 kg
Max Draft: 4.92 ft / 1.50 m
Construction: FG
Ballast Type: Lead
First Built: 1987
# Built: 60
Builder: Southern Boat Building (UK)
Designer: Chuck Paine

KLSC Leaderboard

KLSC Leaderboard

Auxiliary Power/Tanks (orig. equip.)

Make: Perkins
Model: Prima M50
Type: Diesel
HP: 50
Fuel: 70 gals / 265 L

Accomodations

Water: 120 gals / 454 L

Sailboat Calculations

Definitions
S.A. / Displ.: 16.76
Disp: / Len: 258.85
Comfort Ratio: 29.31
Capsize Screening Formula: 1.89
S#: 2.07
Hull Speed: 7.58 kn
Pounds/Inch Immersion: 1,438.39 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

Rig and Sail Particulars

HELP
I: 51.42 ft / 15.67 m
J: 15.83 ft / 4.82 m
P: 45.50 ft / 13.87 m
E: 14.75 ft / 4.50 m
S.A. Fore: 406.99 ft² / 37.81 m²
S.A. Main: 335.56 ft² / 31.17 m²
S.A. Total (100% Fore + Main Triangles): 742.55 ft² / 68.99 m²
S.A./Displ. (calc.): 16.75
Est. Forestay Length: 53.80 ft / 16.40 m

Sailboat Links

Designers: C. W. (Chuck) Paine
Download Boat Record:
