Sailboat Specifications

Definitions
Hull Type: Fin with rudder on skeg
Rigging Type: Masthead Sloop
LOA: 31.92 ft / 9.73 m
LWL: 27.00 ft / 8.23 m
S.A. (reported): 408.00 ft² / 37.90 m²
Beam: 9.50 ft / 2.90 m
Displacement: 11,800.00 lb / 5,352 kg
Ballast: 5,100.00 lb / 2,313 kg
Max Draft: 5.83 ft / 1.78 m
Min Draft: 3.92 ft / 1.19 m
Construction: FG
Ballast Type: Lead
First Built: 1973
Last Built: 1974
Builder: Coronado Yachts (USA)
Designer: William H. Tripp Jr.

KLSC Leaderboard

KLSC Leaderboard

Sailboat Calculations

Definitions
S.A. / Displ.: 12.64
Bal. / Displ.: 43.22
Disp: / Len: 267.63
Comfort Ratio: 31.92
Capsize Screening Formula: 1.67
S#: 1.71
Hull Speed: 6.96 kn
Pounds/Inch Immersion: 916.50 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

Rig and Sail Particulars

HELP
I: 38.00 ft / 11.58 m
J: 13.50 ft / 4.11 m
P: 32.70 ft / 9.97 m
E: 11.50 ft / 3.51 m
S.A. Fore: 256.50 ft² / 23.83 m²
S.A. Main: 188.03 ft² / 17.47 m²
S.A. Total (100% Fore + Main Triangles): 444.53 ft² / 41.30 m²
S.A./Displ. (calc.): 13.77
Est. Forestay Length: 40.33 ft / 12.29 m

Sailboat Links

Designers: William H. Tripp Jr.
Builders: Coronado Yachts
Related Sailboats: SAILCRAFTER 32
Download Boat Record:

Notes

Similar to the COLUMBIA 32. Also sold as the SAILCRAFTER 32 (kit or sail-away).
Shoal draft version: 3.92'
Displacement-
Shoal draft version: 14,080
Ballast-
Shoal draft version: 7,380 lbs.

22 hp Albin Diesel or a 27 hp Palmer gas

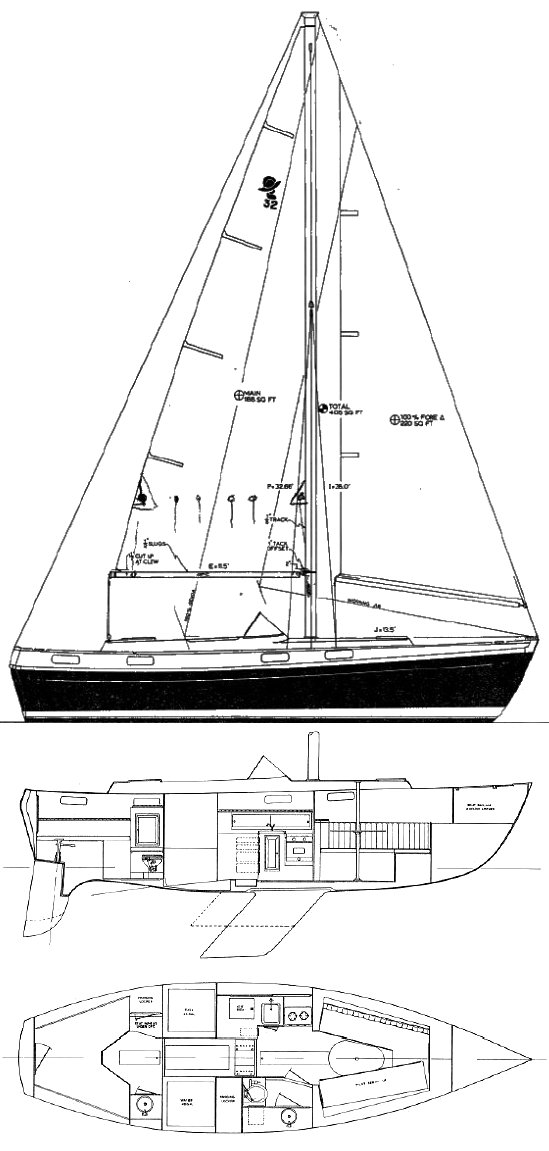

Dimensions for tall rig listed here. (drawing shows std. rig)
