Sailboat Specifications

Definitions
Hull Type: Fin with rudder on skeg
Rigging Type: Masthead Sloop
LOA: 37.73 ft / 11.50 m
LWL: 31.82 ft / 9.70 m
S.A. (reported): 600.00 ft² / 55.74 m²
Beam: 11.48 ft / 3.50 m
Displacement: 19,841.00 lb / 9,000 kg
Ballast: 8,157.00 lb / 3,700 kg
Max Draft: 5.74 ft / 1.75 m
Construction: FG
Ballast Type: Iron
First Built: 1983
Last Built: 1985
Builder: Najad Varvet AB
Designer: Peter Norlin

Auxiliary Power/Tanks (orig. equip.)

Make: Volvo Penta
Model: MD21B
Type: Diesel
HP: 61
Fuel: 79 gals / 299 L

Accomodations

Water: 106 gals / 401 L

Sailboat Calculations

Definitions
S.A. / Displ.: 13.15
Bal. / Displ.: 41.11
Disp: / Len: 274.93
Comfort Ratio: 35.37
Capsize Screening Formula: 1.70
S#: 1.59
Hull Speed: 7.56 kn
Pounds/Inch Immersion: 1,305.23 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

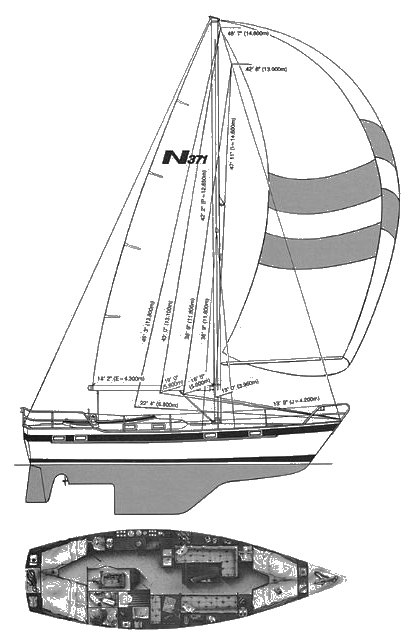

Rig and Sail Particulars

HELP
I: 43.93 ft / 13.39 m
J: 13.78 ft / 4.20 m
P: 42.16 ft / 12.85 m
E: 14.11 ft / 4.30 m
S.A. Fore: 302.68 ft² / 28.12 m²
S.A. Main: 297.44 ft² / 27.63 m²
S.A. Total (100% Fore + Main Triangles): 600.12 ft² / 55.75 m²
S.A./Displ. (calc.): 13.15
Est. Forestay Length: 46.04 ft / 14.03 m

Sailboat Links

Designers: Peter Norlin
Builders: Najad Yachts (SWE)
Download Boat Record:

Notes

Similar to the earlier NAJAD 37.
