Sailboat Specifications

Definitions
Hull Type: Fin with rudder on skeg
Rigging Type: Masthead Sloop
LOA: 34.50 ft / 10.52 m
LWL: 25.00 ft / 7.62 m
S.A. (reported): 512.00 ft² / 47.57 m²
Beam: 10.83 ft / 3.30 m
Displacement: 8,500.00 lb / 3,856 kg
Ballast: 4,500.00 lb / 2,041 kg
Max Draft: 6.00 ft / 1.83 m
Construction: Wood
Ballast Type: Lead
First Built: 1979
# Built: 4
Builder: Snug Harbor Boat Works (USA)
Designer: Sparkman & Stephens

KLSC Leaderboard

KLSC Leaderboard

Sailboat Calculations

Definitions
S.A. / Displ.: 19.73
Bal. / Displ.: 52.94
Disp: / Len: 242.86
Comfort Ratio: 19.75
Capsize Screening Formula: 2.13
S#: 2.50
Hull Speed: 6.70 kn
Pounds/Inch Immersion: 967.42 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

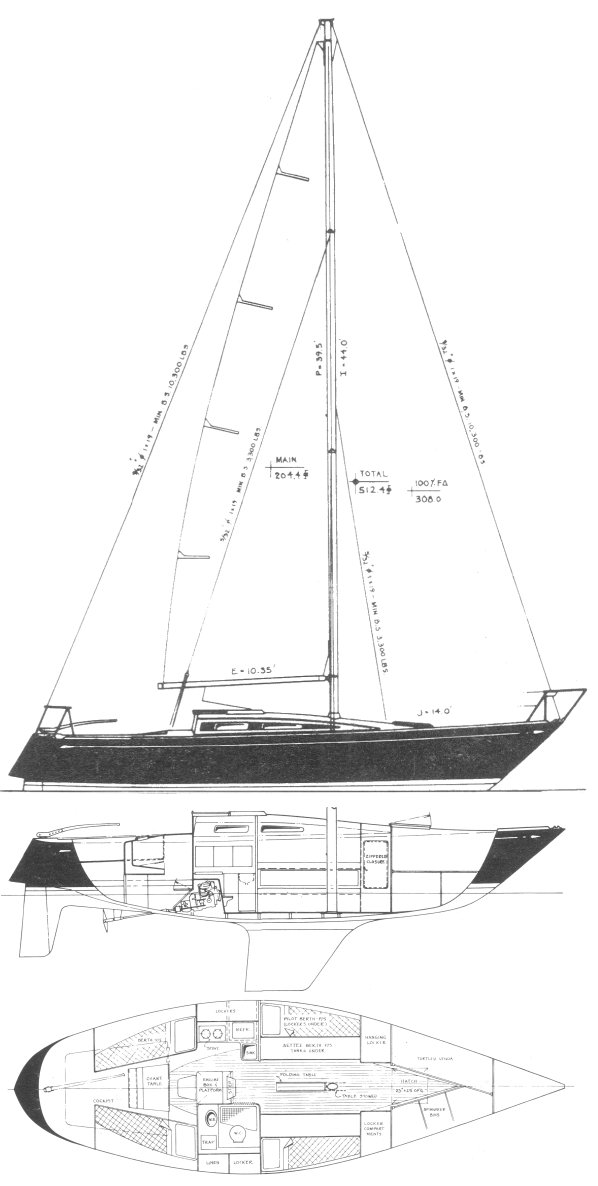

Rig and Sail Particulars

HELP
I: 44.00 ft / 13.41 m
J: 14.00 ft / 4.27 m
P: 39.50 ft / 12.04 m
E: 10.35 ft / 3.15 m
S.A. Fore: 308.00 ft² / 28.61 m²
S.A. Main: 204.41 ft² / 18.99 m²
S.A. Total (100% Fore + Main Triangles): 512.41 ft² / 47.60 m²
S.A./Displ. (calc.): 19.75
Est. Forestay Length: 46.17 ft / 14.07 m

Sailboat Links

Designers: Sparkman & Stephens
Associations: IOR 3/4 ton
Related Sailboats: ORION 35
Download Boat Record:

Notes

IOR 3/4 ton. S&S #2276.
