SHAW 24

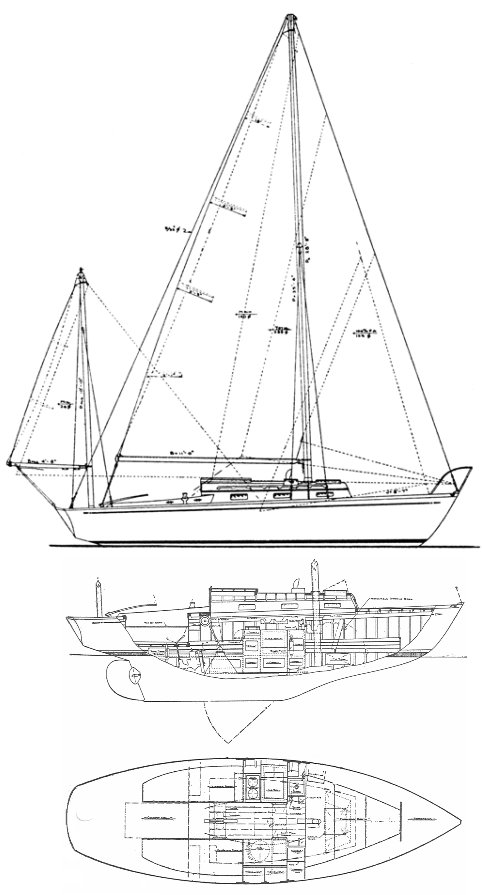

SHAW 24 photo SHAW 24 drawing

Sailboat Specifications


Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Yawl
LOA:
23.92 ft / 7.29 m
LWL:
18.50 ft / 5.64 m
Beam:
7.42 ft / 2.26 m
S.A. (reported):
270.00 ft2 / 25.08 m2
Draft (max):
5.25 ft / 1.60 m
Draft (min):
2.75 ft / 0.84 m
Displacement:
4,800 lb / 2,177 kg
Ballast:
1,500 lb / 680 kg
S.A./Disp.:
15.23
Bal./Disp.:
31.25
Disp./Len.:
338.44
Construction:
Wood/FG
Ballast Type:
lead
First Built:
1957
Builder:
A. Jenson and Son (DEN)
Designer:
William Shaw

Auxiliary Power/Tanks (orig. equip.)

Make:
Kermath
Model:
Sea Twin
Type:
Gas
HP:
10
Fuel:
10 gals / 38 L

Sailboat Calculations

S.A./Disp.:
15.23
Bal./Disp.:
31.25
Disp./Len.:
338.44
Comfort Ratio:
25.52
Capsize Screening Formula:
1.76
S#:
1.36

Accommodations

Water:
20 gals / 76 L

Sailboat Links

Notes

This boat was drawn by William Shaw while he was working in the S&S office. It is the predecessor to the DOLPHIN 24. First boats were built of wood in Denmark. The first boat, 'Trina', was extremely successful as a racer. A few later hulls were turned out in fiberglass by an unknown builder. Some boats were dilivered as sloops.
(Most of this information comes from the excellent Dolphin 24 website. (www.dolphin.org)
