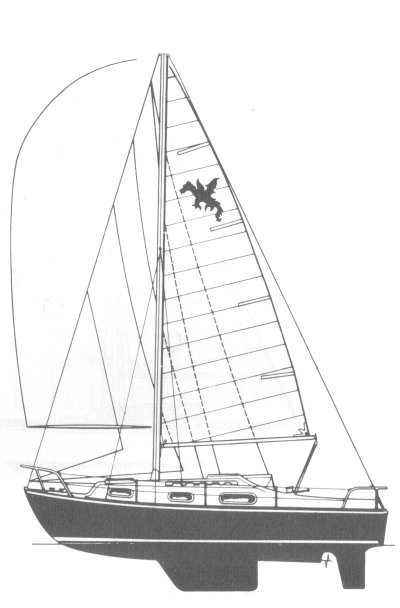

SNAPDRAGON 27 MK II

SNAPDRAGON 27 MK II

Beta Marine

Beta Marine

Sailboat Specifications

Definitions
Hull Type: Twin Keel
Rigging Type: Masthead Sloop
LOA: 27.18 ft / 8.28 m
LWL: 22.75 ft / 6.93 m
S.A. (reported): 295.00 ft² / 27.41 m²
Beam: 8.50 ft / 2.59 m
Displacement: 6,162.00 lb / 2,795 kg
Ballast: 2,200.00 lb / 998 kg
Max Draft: 2.75 ft / 0.84 m
Construction: FG
First Built: 1974
Builder: Thames Marine (UK)
Designer: Thames Marine

Sailboat Calculations

Definitions
S.A. / Displ.: 14.09
Bal. / Displ.: 35.70
Disp: / Len: 233.63
Comfort Ratio: 22.86
Capsize Screening Formula: 1.86
Hull Speed: 6.39 kn
Pounds/Inch Immersion: 690.95 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

Sailboat Links

Builders: Thames Marine (UK)
Associations: Snapdragon, Mirage and Invaders Association
Download Boat Record:

Notes

A Fin Keel version was also available.
