SOVEREL 28 MORC

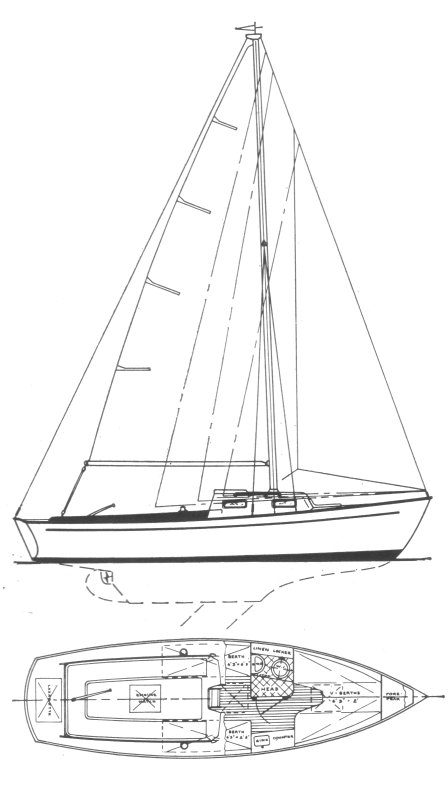

SOVEREL 28 MORC drawing

Sailboat Specifications


Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
LOA:
28.58 ft / 8.71 m
LWL:
24.16 ft / 7.36 m
S.A. (reported):
383.00 ft2 / 35.58 m2
Beam:
8.33 ft / 2.54 m
Draft (max):
6.50 ft / 1.98 m
Draft (min):
2.83 ft / 0.86 m
Displacement:
6,500 lb / 2,948 kg
Ballast:
1,260 lb / 572 kg
S.A./Disp.:
17.65
Bal./Disp.:
19.38
Disp./Len.:
205.77
Construction:
FG
Ballast Type:
First Built:
1963
Last Built:
1970
# Built:
Builder:
Soverel Marine (USA)
Designer:
Daniel McCarthy/W.Walters
Website:

Sailboat Calculations

S.A./Disp.:
17.65
Bal./Disp.:
19.38
Disp./Len.:
205.77
Comfort Ratio:
23.40

Rig and Sail Particulars

I:
33.58 ft / 10.24 m
J:
11.75 ft / 3.58 m
P:
30.58 ft / 9.32 m
E:
12.17 ft / 3.71 m
SPL/TPS:
ISP:
S.A. Fore:
197.28 ft2 / 18.33 m2
S.A. Main:
186.08 ft2 / 17.29 m2
S.A. Total (100% Fore + Main Triangles)
383.36 ft2 / 35.62 m2
S.A./Disp. (calc.):
17.67
Est. Forestay Len.:
35.58 ft / 10.84 m

Sailboat Links

Related Sailboats:

Notes

The SOVEREL 28 is a more cruising oriented version based on the same hull (smaller cockpit and extended coachroof). Both versions were available with a yawl rig.



.
