Sailboat Specifications

Definitions
Hull Type: Swing Keel
Rigging Type: Masthead Sloop
LOA: 32.67 ft / 9.96 m
LWL: 27.50 ft / 8.38 m
S.A. (reported): 379.00 ft² / 35.21 m²
Beam: 11.86 ft / 3.61 m
Displacement: 13,000.00 lb / 5,897 kg
Ballast: 5,000.00 lb / 2,268 kg
Max Draft: 6.67 ft / 2.03 m
Min Draft: 2.00 ft / 0.61 m
Construction: FG
First Built: 1980
Builder: Tanzer Industries Ltd. (CAN)
Designer: Dick Carter

KLSC Leaderboard

KLSC Leaderboard

Auxiliary Power/Tanks (orig. equip.)

Make: Yanmar
Type: Diesel

Sailboat Calculations

Definitions
S.A. / Displ.: 11.01
Bal. / Displ.: 38.46
Disp: / Len: 279.06
Comfort Ratio: 25.66
Capsize Screening Formula: 2.02
Hull Speed: 7.03 kn
Pounds/Inch Immersion: 1,165.37 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

Sailboat Links

Designers: Dick Carter
Builders: Tanzer Industries Ltd.
Download Boat Record:

Notes

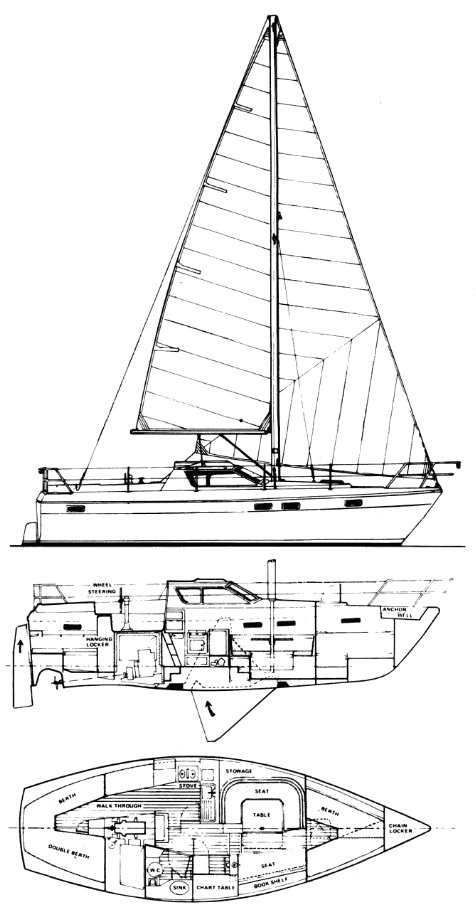

The TANZER 10 features a pilothouse with inside steering. Offered with fixed or lifting keel versions.
Draft for fixed keel version: 5.92'
A slightly later version is the TANZER 10.5 which appears similar.
