49ERFX

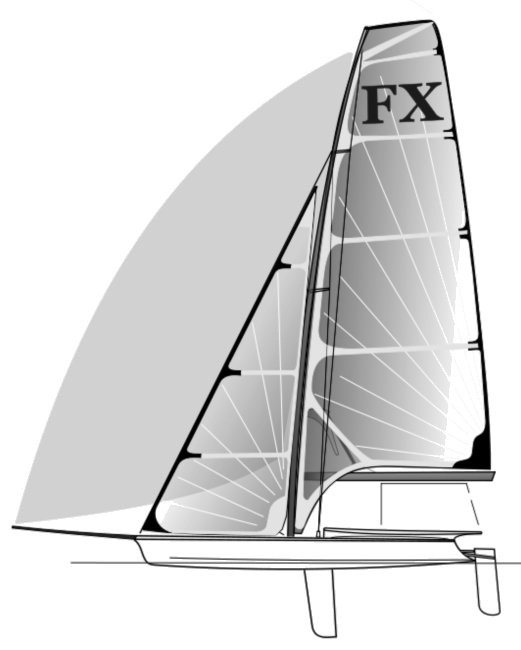

49ERFX photo 49ERFX drawing

Sailboat Specifications


Hull Type:
Centerboard Dinghy
Rigging Type:
Fractional Sloop
LOA:
16.00 ft / 4.88 m
LWL:
S.A. (reported):
207.00 ft2 / 19.23 m2
Beam:
6.33 ft / 1.93 m
Draft (max):
4.92 ft / 1.50 m
Draft (min):
Displacement:
270 lb / 122 kg
Ballast:
S.A./Disp.:
79.36
Bal./Disp.:
Disp./Len.:
Construction:
FG
Ballast Type:
First Built:
2010
Last Built:
# Built:
Builder:
Designer:
Julian Bethwaite
Website:

Sailboat Calculations

S.A./Disp.:
79.36
Bal./Disp.:
Disp./Len.:

Sailboat Links

Designers:
Related Sailboats:

Notes

49ER hull with slightly smaller rig for lighter sailors. Beam with wings removed: 1.76m/5.58' Mast height 7.5m/24.6' Mainsail Area 13.8m2/148.5 sq.ft. Jib Area 5.8m2 /62.4 sq.ft. Gennaker Area 25.1m2/227.1 sq.ft. To be sailed as a separate class (from 49ER) in 2016 Olympics.



.
