ALLMAND 35

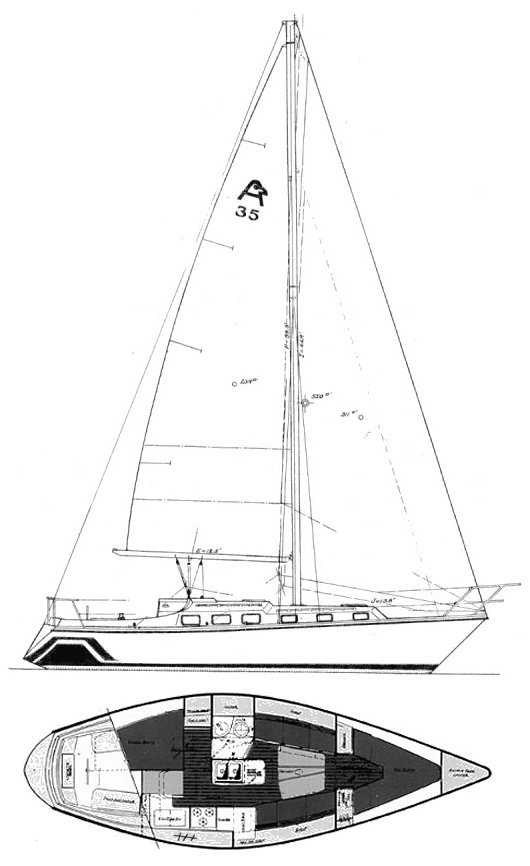

ALLMAND 35 insignia ALLMAND 35 photo ALLMAND 35 drawing

Sailboat Specifications


Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
LOA:
34.75 ft / 10.59 m
LWL:
28.17 ft / 8.59 m
Beam:
11.67 ft / 3.56 m
S.A. (reported):
549.00 ft2 / 51.00 m2
Draft (max):
5.16 ft / 1.57 m
Displacement:
15,100 lb / 6,849 kg
Ballast:
4,300 lb / 1,950 kg
S.A./Disp.:
14.43
Bal./Disp.:
28.48
Disp./Len.:
301.56
Construction:
FG (solid)
First Built:
1981
Last Built:
1985
Builder:
Allmand Boats Inc. (USA)
Designer:
W. H. Scott

Auxiliary Power/Tanks (orig. equip.)

Make:
Universal
Type:
Diesel
HP:
30
Fuel:
40 gals / 151 L

Sailboat Calculations

S.A./Disp.:
14.43
Bal./Disp.:
28.48
Disp./Len.:
301.56
Comfort Ratio:
29.35
Capsize Screening Formula:
1.89
S#:
1.53

Rig and Sail Particulars

I:
44.90 ft / 13.69 m
J:
13.80 ft / 4.21 m
P:
38.30 ft / 11.67 m
E:
12.50 ft / 3.81 m
S.A. Fore:
309.81 ft2 / 28.78 m2
S.A. Main:
239.38 ft2 / 22.24 m2
S.A. Total (100% Fore + Main Triangles)
549.19 ft2 / 51.02 m2
S.A./Disp. (calc.):
14.44
Est. Forestay Len.:
46.97 ft / 14.32 m

Accommodations

Water:
95 gals / 360 L

Sailboat Links

Notes

Based on the earlier CAPTIVA 35.
Shoal draft: 4.16'.
A 'Raised Cabin' Motor Sailor version was also available.
Dimensions from original builders brochure.
