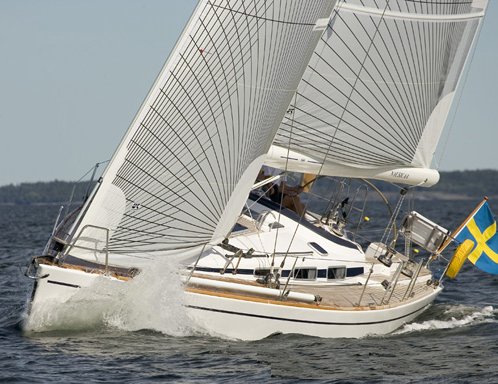

ARCONA 400

Sailboat Specifications

both US imperial metric

Hull Type:

Fin Keel w/bulb

Rigging Type:

Fractional Sloop

LOA:

39.30 ft / 11.98 m

LWL:

34.45 ft / 10.50 m

Beam:

12.53 ft / 3.82 m

S.A. (reported):

868.00 ft² / 80.64 m²

Draft (max):

7.87 ft / 2.40 m

Displacement:

15,432 lb / 7,000 kg

Ballast:

5,952 lb / 2,700 kg

S.A./Disp.:

22.49

Bal./Disp.:

38.57

Disp./Len.:

168.50

Construction:

FG

Ballast Type:

Lead

First Built:

2001

Builder:

Boo Marin (SWE)

Designer:

Stefan Qviberg

Auxiliary Power/Tanks (orig. equip.)

Make:

Volvo

Model:

2040

Type:

Diesel

HP:

38

Fuel:

40 gals / 151 L

Sailboat Calculations

Definitions

S.A./Disp.:

22.49

Bal./Disp.:

38.57

Disp./Len.:

168.50

Comfort Ratio:

22.91

Capsize Screening Formula:

2.02

S#:

3.64

Rig and Sail Particulars

help

I:

52.33 ft / 15.95 m

J:

13.94 ft / 4.25 m

P:

50.36 ft / 15.35 m

E:

18.04 ft / 5.50 m

S.A. Fore:

364.74 ft² / 33.89 m²

S.A. Main:

454.25 ft² / 42.20 m²

S.A. Total (100% Fore + Main Triangles)

818.99 ft² / 76.09 m²

S.A./Disp. (calc.):

21.22

Est. Forestay Len.:

54.15 ft / 16.51 m

Accommodations

Water:

69 gals / 261 L

Sailboat Links

Designers:

Stefan Qviberg

Builders:

Arcona Yachts (Boo Marin AB)

Download Boat Record:

PDF

Notes

Shallow draft: 2m/6.56'
