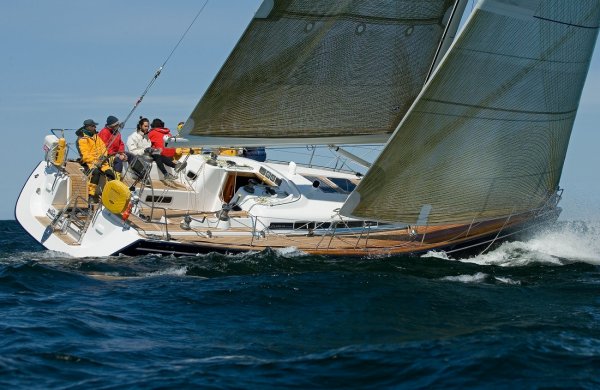

ARCONA 460

Sailboat Specifications

both US imperial metric

Hull Type:

Fin w/bulb & spade rudder

Rigging Type:

Fractional Sloop

LOA:

45.93 ft / 14.00 m

LWL:

41.17 ft / 12.55 m

Beam:

13.78 ft / 4.20 m

S.A. (reported):

1,222.00 ft² / 113.53 m²

Draft (max):

8.01 ft / 2.44 m

Draft (min):

9.19 ft / 2.80 m

Displacement:

22,487 lb / 10,200 kg

Ballast:

9,370 lb / 4,250 kg

S.A./Disp.:

24.64

Bal./Disp.:

41.67

Disp./Len.:

143.86

Construction:

FG w/devinacell

Ballast Type:

Lead

First Built:

2005

Builder:

Arcona Yachts (SWE)

Designer:

Stefan Qviberg

Auxiliary Power/Tanks (orig. equip.)

Make:

Yanmar

Model:

4JH5 / SD50

Type:

Diesel

Fuel:

53 gals / 201 L

Sailboat Calculations

Definitions

S.A./Disp.:

24.64

Bal./Disp.:

41.67

Disp./Len.:

143.86

Comfort Ratio:

24.80

Capsize Screening Formula:

1.96

S#:

4.49

Rig and Sail Particulars

help

I:

62.01 ft / 18.90 m

J:

17.65 ft / 5.38 m

P:

60.69 ft / 18.50 m

E:

22.24 ft / 6.78 m

S.A. Fore:

547.24 ft² / 50.84 m²

S.A. Main:

674.87 ft² / 62.70 m²

S.A. Total (100% Fore + Main Triangles)

1,222.11 ft² / 113.54 m²

S.A./Disp. (calc.):

24.64

Est. Forestay Len.:

64.47 ft / 19.65 m

Mast Height from DWL:

72.41 ft / 22.07 m

Accommodations

Water:

100 gals / 379 L

Sailboat Links

Designers:

Stefan Qviberg

Builders:

Arcona Yachts (Boo Marin AB)

Download Boat Record:

PDF

Notes

Deep draft: 2.8m/8'
Hot water 40l
Holding 70l
Main 74m2
Furling gen. 74m2
Jib 110% 51m2
Self tacking jib: 46m2
Spinnaker 168m2
Gennaker 163m2
