ARGONAUTA 27

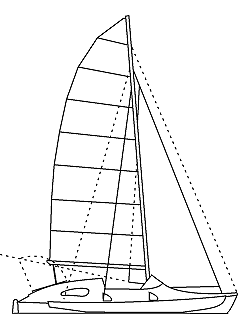

ARGONAUTA 27 photo ARGONAUTA 27 drawing

Sailboat Specifications


Hull Type:
Trimaran Dbrd.
Rigging Type:
Fractional Sloop
LOA:
27.00 ft / 8.23 m
LWL:
26.00 ft / 7.92 m
S.A. (reported):
376.00 ft2 / 34.93 m2
Beam:
20.00 ft / 6.10 m
Draft (max):
4.50 ft / 1.37 m
Draft (min):
1.18 ft / 0.36 m
Displacement:
2,400 lb / 1,089 kg
Ballast:
S.A./Disp.:
33.64
Bal./Disp.:
Disp./Len.:
60.96
Construction:
FG
Ballast Type:
First Built:
1986
Last Built:
# Built:
Builder:
Tremolino Boat Co.(USA)
Designer:
Dick Newick
Website:

Sailboat Calculations

S.A./Disp.:
33.64
Bal./Disp.:
Disp./Len.:
60.96

Sailboat Links

Designers:

Notes

The ARGONAUTA 27 has aft folding akas that reduce the beam to 8.5' for trailering. Listed dimensions changed slightly into the 1990's.



.
