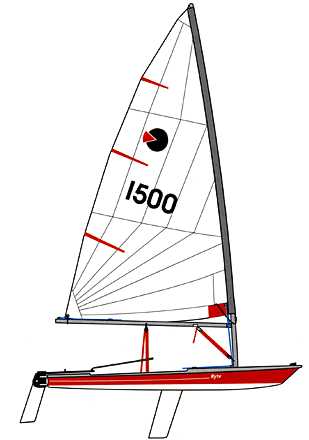

BYTE

Sailboat Specifications

both US imperial metric

Hull Type:

Dbrd. Dinghy

Rigging Type:

Cat (unstayed)

LOA:

12.00 ft / 3.66 m

LWL:

10.50 ft / 3.20 m

Beam:

4.25 ft / 1.30 m

S.A. (reported):

58.00 ft² / 5.39 m²

Displacement:

99 lb / 45 kg

S.A./Disp.:

43.38

Disp./Len.:

38.18

Construction:

FG

First Built:

1973

# Built:

2500

Builder:

Byte Boats Inc. / Performance Sailcraft

Designer:

Ian Bruce

Sailboat Calculations

Definitions

S.A./Disp.:

43.38

Disp./Len.:

38.18

Comfort Ratio:

2.03

Capsize Screening Formula:

3.68

Sailboat Links

Designers:

Ian Bruce

Builders:

Ovington Boats Ltd.

Xtreme Sailing Products

Nautivela (ITA)

Zim Sailing (USA)

Associations:

Byte Class Home Page

Download Boat Record:

PDF

Notes

Topper International Ltd.
Kingsnorth Technology Park
Wotton Road, Ashford
Kent, TN23 6LN
United Kingdom

Phone: 01233 629186
Fax: 01233 645897
