CATALINA 36 MK II

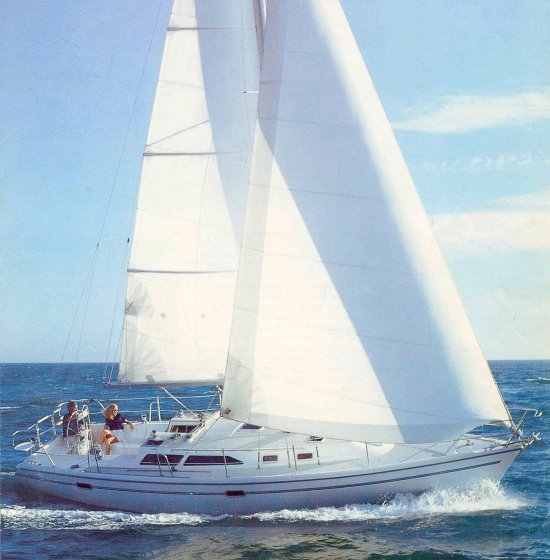

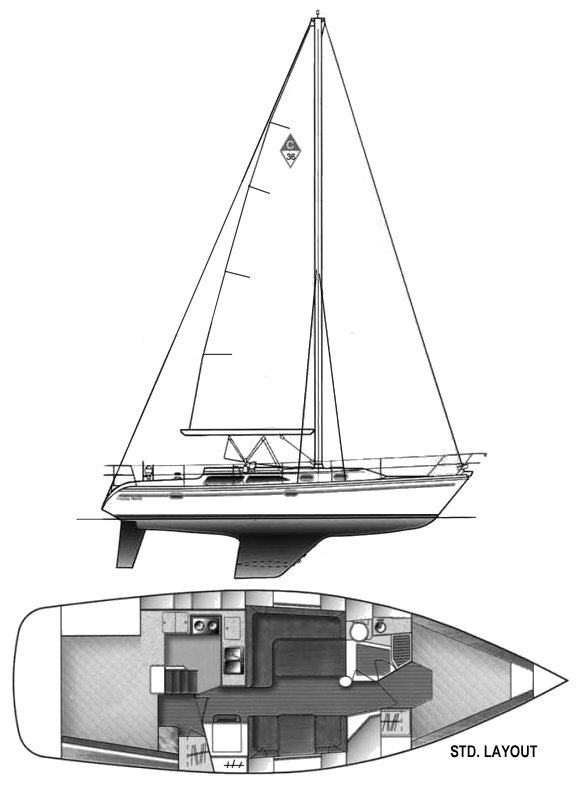

CATALINA 36 MK II photo CATALINA 36 MK II drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
LOA:
35.58 ft / 10.84 m
LWL:
30.25 ft / 9.22 m
S.A. (reported):
555.00 ft2 / 51.56 m2
Beam:
11.92 ft / 3.63 m
Draft (max):
5.83 ft / 1.78 m
Draft (min):
Displacement:
15,000 lb / 6,804 kg
Ballast:
6,000 lb / 2,722 kg
S.A./Disp.:
14.65
Bal./Disp.:
40.00
Disp./Len.:
241.92
Construction:
FG solid
Ballast Type:
Lead
First Built:
1994
Last Built:
2005
# Built:
Builder:
Catalina Yachts (USA)
Designer:
Frank Butler/Gerry Douglas
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Universal
Model:
Type:
Diesel
HP:
35

Sailboat Calculations

S.A./Disp.:
14.65
Bal./Disp.:
40.00
Disp./Len.:
241.92
Comfort Ratio:
26.83

Rig and Sail Particulars

I:
44.75 ft / 13.64 m
J:
14.33 ft / 4.37 m
P:
39.00 ft / 11.89 m
E:
12.00 ft / 3.66 m
SPL/TPS:
ISP:
S.A. Fore:
320.63 ft2 / 29.79 m2
S.A. Main:
234.00 ft2 / 21.74 m2
S.A. Total (100% Fore + Main Triangles)
554.63 ft2 / 51.53 m2
S.A./Disp. (calc.):
14.64
Est. Forestay Len.:
46.99 ft / 14.32 m

Sailboat Links

Designers:
Builders:
Related Sailboats:

Notes

Same hull and rig as the earlier version introduced in 1982 but with a larger cockpit and updated deck and interior. (Replaced with the CATALINA 375 in 2008) Also available with a shallower draft wing keel and tall rig. Wing keel draft: 4.52'/1.38m. Dimensions for tall rig: I: 46.75'/14.25m J: 14.33'/4.37m P: 41.0'/12.5m E: 13.0'/3.96m



.
