CATALINA 380

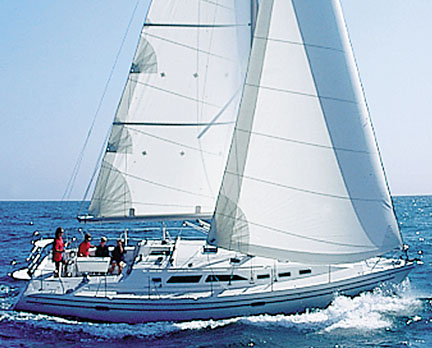

CATALINA 380 photo CATALINA 380 drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
LOA:
38.42 ft / 11.71 m
LWL:
32.42 ft / 9.88 m
Beam:
12.33 ft / 3.76 m
S.A. (reported):
723.00 ft2 / 67.17 m2
Draft (max):
7.17 ft / 2.19 m
Draft (min):
Displacement:
19,000 lb / 8,618 kg
Ballast:
6,800 lb / 3,084 kg
S.A./Disp.:
16.31
Bal./Disp.:
35.79
Disp./Len.:
248.92
Construction:
FG
Ballast Type:
First Built:
1997
Last Built:
# Built:
Builder:
Catalina Yachts (USA)
Designer:
G. Douglas / Catalina
Website:

Auxiliary Power/Tanks (orig. equip.)

Make:
Westerbeke
Model:
Type:
Diesel
HP:
42
Water:
102 gals / 386 L
Fuel:
26 gals / 98 L

Sailboat Calculations

S.A./Disp.:
16.31
Bal./Disp.:
35.79
Disp./Len.:
248.92
Comfort Ratio:
30.24
Capsize Screening Formula:
1.85

Rig and Sail Particulars

I:
50.92 ft / 15.52 m
J:
14.67 ft / 4.47 m
P:
44.83 ft / 13.66 m
E:
15.67 ft / 4.78 m
SPL/TPS:
ISP:
S.A. Fore:
373.50 ft2 / 34.70 m2
S.A. Main:
351.24 ft2 / 32.63 m2
S.A. Total (100% Fore + Main Triangles)
724.74 ft2 / 67.33 m2
S.A./Disp. (calc.):
16.35
Est. Forestay Len.:
52.99 ft / 16.15 m

Sailboat Links

Designers:
Builders:
Associations:

Notes

Loosely based on the MORGAN-CATALINA 381.
Shoal draft/Wing keel version: 5.33'/1.62m.

TALL RIG:
I: 54.00'
J: 14.67'
P: 47.92'
E: 15.67'
