CHASER 33

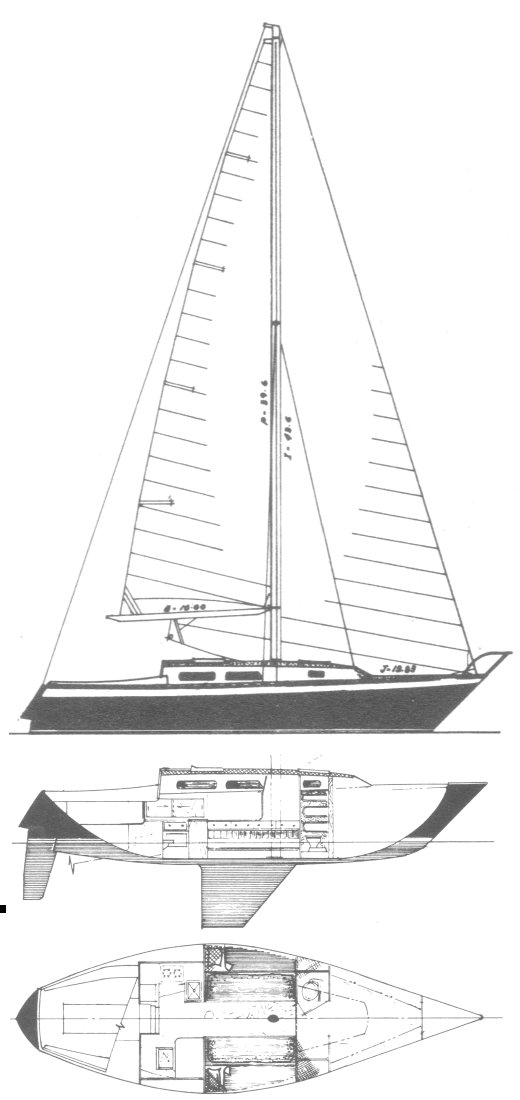

CHASER 33 drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
LOA:
33.00 ft / 10.06 m
LWL:
28.25 ft / 8.61 m
Beam:
10.50 ft / 3.20 m
S.A. (reported):
499.00 ft2 / 46.36 m2
Draft (max):
6.08 ft / 1.85 m
Draft (min):
Displacement:
9,300 lb / 4,218 kg
Ballast:
4,900 lb / 2,223 kg
S.A./Disp.:
18.11
Bal./Disp.:
52.69
Disp./Len.:
184.15
Construction:
FG
Ballast Type:
Lead
First Built:
1975
Last Built:
# Built:
Builder:
Chaser Yachts Inc. (CAN)
Designer:
Doug Peterson
Website:

Auxiliary Power/Tanks (orig. equip.)

Make:
Model:
Type:
Gas
HP:
Water:
20 gals / 76 L
Fuel:
20 gals / 76 L

Sailboat Calculations

S.A./Disp.:
18.11
Bal./Disp.:
52.69
Disp./Len.:
184.15
Comfort Ratio:
21.13
Capsize Screening Formula:
2.00

Rig and Sail Particulars

I:
43.60 ft / 13.29 m
J:
13.80 ft / 4.21 m
P:
39.60 ft / 12.07 m
E:
10.00 ft / 3.05 m
SPL/TPS:
ISP:
S.A. Fore:
300.84 ft2 / 27.95 m2
S.A. Main:
198.00 ft2 / 18.39 m2
S.A. Total (100% Fore + Main Triangles)
498.84 ft2 / 46.34 m2
S.A./Disp. (calc.):
18.11
Est. Forestay Len.:
45.73 ft / 13.94 m
Mast Height from DWL:
49.00 ft / 14.94 m

Sailboat Links

Designers:
Associations:

Notes

IOR 3/4 ton racer. It is thought that the molds for this yacht were later aquired by Bayliner and used for US 33-1/BUCCANEER 335.



.
