CHINOOK 37

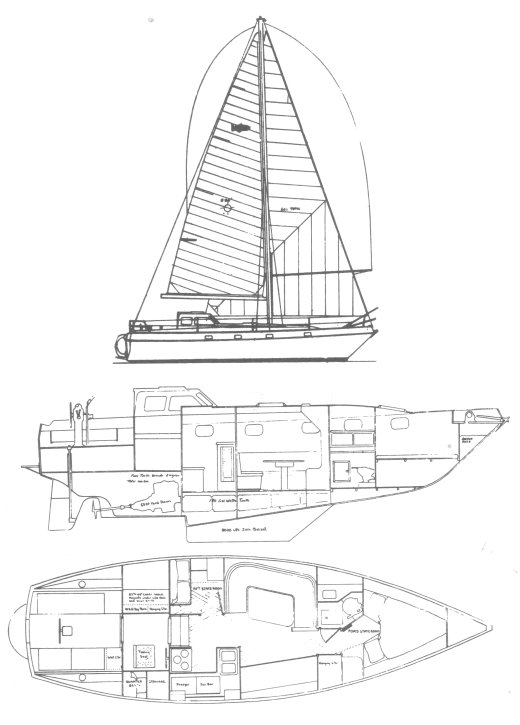

CHINOOK 37 drawing

Sailboat Specifications


Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
LOA:
37.00 ft / 11.28 m
LWL:
31.25 ft / 9.53 m
S.A. (reported):
641.00 ft2 / 59.55 m2
Beam:
11.67 ft / 3.56 m
Draft (max):
5.00 ft / 1.52 m
Draft (min):
Displacement:
18,600 lb / 8,437 kg
Ballast:
8,000 lb / 3,629 kg
S.A./Disp.:
14.66
Bal./Disp.:
43.01
Disp./Len.:
272.09
Construction:
FG
Ballast Type:
First Built:
1974
Last Built:
# Built:
Builder:
Philbrooks Shipyard Ltd. (CAN)
Designer:
S. C. Huntingford
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Ford
Model:
Type:
Diesel
HP:
65
Water:
100 gals.
Fuel:
100 gals.

Sailboat Calculations

S.A./Disp.:
14.66
Bal./Disp.:
43.01
Disp./Len.:
272.09
Comfort Ratio:
33.05
