COM-PAC 19

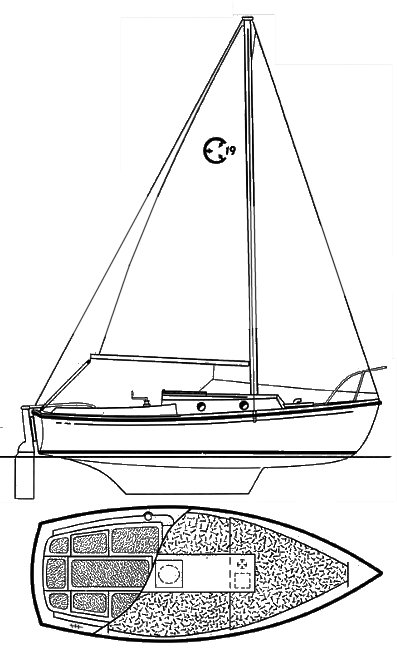

COM-PAC 19 drawing

Sailboat Specifications


Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
LOA:
19.00 ft / 5.79 m
LWL:
16.33 ft / 4.98 m
S.A. (reported):
145.00 ft2 / 13.47 m2
Beam:
7.00 ft / 2.13 m
Draft (max):
2.00 ft / 0.61 m
Draft (min):
Displacement:
2,000 lb / 907 kg
Ballast:
800 lb / 363 kg
S.A./Disp.:
14.65
Bal./Disp.:
40.00
Disp./Len.:
205.03
Construction:
FG
Ballast Type:
First Built:
1979
Last Built:
# Built:
Builder:
Com-Pac Yachts (USA)
Designer:
Bob Johnson
Website:

Sailboat Calculations

S.A./Disp.:
14.65
Bal./Disp.:
40.00
Disp./Len.:
205.03
Comfort Ratio:
13.50

Rig and Sail Particulars

I:
21.75 ft / 6.63 m
J:
6.42 ft / 1.96 m
P:
18.75 ft / 5.72 m
E:
8.00 ft / 2.44 m
SPL/TPS:
ISP:
S.A. Fore:
69.82 ft2 / 6.49 m2
S.A. Main:
75.00 ft2 / 6.97 m2
S.A. Total (100% Fore + Main Triangles)
144.82 ft2 / 13.45 m2
S.A./Disp. (calc.):
14.63
Est. Forestay Len.:
22.68 ft / 6.91 m
