CONCORDIA 41

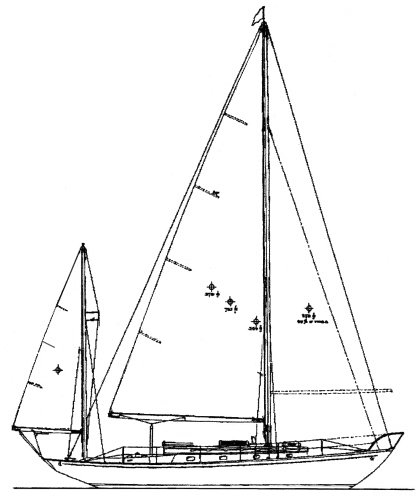

CONCORDIA 41 drawing

Sailboat Specifications


Hull Type:
Long Keel
Rigging Type:
Masthead Yawl
LOA:
41.00 ft / 12.50 m
LWL:
29.50 ft / 8.99 m
S.A. (reported):
695.00 ft2 / 64.57 m2
Beam:
10.25 ft / 3.12 m
Draft (max):
5.83 ft / 1.78 m
Draft (min):
Displacement:
21,450 lb / 9,730 kg
Ballast:
8,250 lb / 3,742 kg
S.A./Disp.:
14.46
Bal./Disp.:
38.46
Disp./Len.:
373.00
Construction:
Wood planked, (Mahogany, Oak frames)
Ballast Type:
Iron
First Built:
1957
Last Built:
1966
# Built:
26
Builder:
Abeking & Rasmussen (GER)
Designer:
C. Raymond Hunt, Waldo Howland
Website:

Sailboat Calculations

S.A./Disp.:
14.46
Bal./Disp.:
38.46
Disp./Len.:
373.00
Comfort Ratio:
45.33

Rig and Sail Particulars

I:
43.50 ft / 13.26 m
J:
13.75 ft / 4.19 m
P:
39.00 ft / 11.89 m
E:
17.00 ft / 5.18 m
PY:
16.75 ft / 5.11 m
EY:
7.75 ft / 2.36 m
SPL/TPS:
ISP:
S.A. Fore:
299.06 ft2 / 27.78 m2
S.A. Main:
331.50 ft2 / 30.80 m2
S.A. Total (100% Fore + Main Triangles)
630.56 ft2 / 58.58 m2
S.A./Disp. (calc.):
13.12
Est. Forestay Len.:
45.62 ft / 13.91 m

Sailboat Links

Notes

CONCORDIA 41 is a later, slightly longer version of the CONCORDIA 40/CONCORDIA YAWL. Also available as a sloop. Taller Rig: I=49.75'; P=43.5' Displacement and other dimensions are those listed by the builder in 1965. Rig. dimensions from a rating certificate. (Dimensions not from orig. plans and vary among different sources.)



.
