Sailboat Specifications

Definitions
Hull Type: Long keel w/trans. hung rudder
Rigging Type: Masthead Sloop
LOA: 25.25 ft / 7.70 m
LWL: 19.83 ft / 6.04 m
S.A. (reported): 288.00 ft² / 26.76 m²
Beam: 7.25 ft / 2.21 m
Displacement: 5,500.00 lb / 2,495 kg
Max Draft: 3.83 ft / 1.17 m
Construction: FG
First Built: 1961
# Built: 35
Builder: Whitby Boat Works (CAN)
Designer: T. Sunden

KLSC Leaderboard

KLSC Leaderboard

Sailboat Calculations

Definitions
S.A. / Displ.: 14.83
Disp: / Len: 314.88
Comfort Ratio: 28.29
Capsize Screening Formula: 1.65
S#: 1.51
Hull Speed: 5.97 kn
Pounds/Inch Immersion: 513.70 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

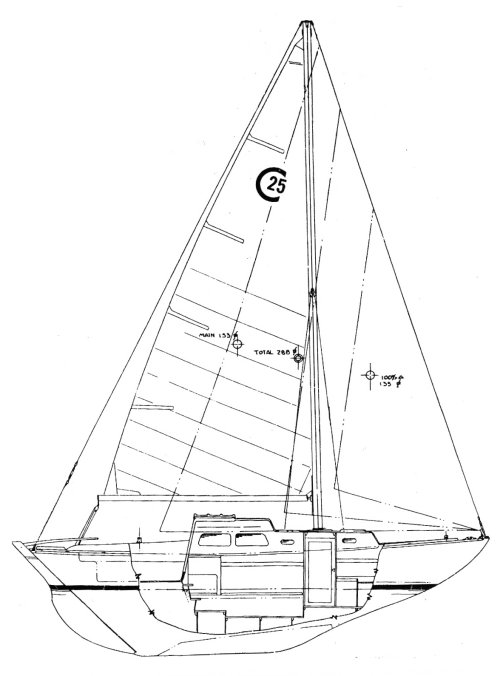

Rig and Sail Particulars

HELP
I: 30.80 ft / 9.39 m
J: 9.00 ft / 2.74 m
P: 26.80 ft / 8.17 m
E: 11.80 ft / 3.60 m
S.A. Fore: 138.60 ft² / 12.88 m²
S.A. Main: 158.12 ft² / 14.69 m²
S.A. Total (100% Fore + Main Triangles): 296.72 ft² / 27.57 m²
S.A./Displ. (calc.): 15.28
Est. Forestay Length: 32.09 ft / 9.78 m

Sailboat Links

Builders: Whitby Boat Works Ltd. (CAN)
Download Boat Record:

Notes

Based on the INTERNATIONAL FOLKBOAT.
Also known as the CONTINENTAL FOLKBOAT, WHITBY 25 FOLKBOAT, GREAT LAKES FOLKBOAT, WALTON 25. Thanks to 'daveyjustin' for contributing updated information on this yacht.
