COOPER 416

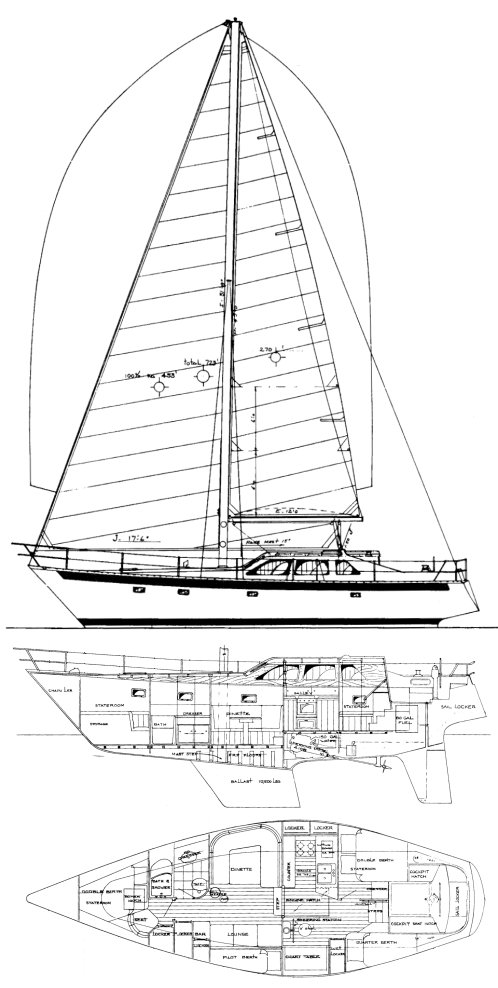

COOPER 416 photo COOPER 416 drawing

Sailboat Specifications


Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
LOA:
41.50 ft / 12.65 m
LWL:
32.50 ft / 9.91 m
Beam:
14.00 ft / 4.27 m
S.A. (reported):
723.00 ft2 / 67.17 m2
Draft (max):
6.58 ft / 2.01 m
Displacement:
24,000 lb / 10,886 kg
Ballast:
10,500 lb / 4,763 kg
S.A./Disp.:
13.96
Bal./Disp.:
43.75
Disp./Len.:
312.11
Construction:
FG
Ballast Type:
Lead
First Built:
1978
Builder:
Cooper Yachts Ltd. (CAN)
Designer:
Stan Huntingford

Auxiliary Power/Tanks (orig. equip.)

Make:
Perkins
Model:
4-108 FWC
Type:
Diesel
HP:
48
Fuel:
100 gals / 379 L

Sailboat Calculations

S.A./Disp.:
13.96
Bal./Disp.:
43.75
Disp./Len.:
312.11
Comfort Ratio:
31.36
Capsize Screening Formula:
1.95
S#:
1.42

Rig and Sail Particulars

I:
51.80 ft / 15.79 m
J:
17.50 ft / 5.33 m
P:
45.00 ft / 13.72 m
E:
12.00 ft / 3.66 m
S.A. Fore:
453.25 ft2 / 42.11 m2
S.A. Main:
270.00 ft2 / 25.08 m2
S.A. Total (100% Fore + Main Triangles)
723.25 ft2 / 67.19 m2
S.A./Disp. (calc.):
13.96
Est. Forestay Len.:
54.68 ft / 16.67 m

Accommodations

Water:
150 gals / 568 L

Sailboat Links

Notes

Molds were later acquired by Bayliner/US Yachts where it became the US 42.
