CORONADO 27 CB

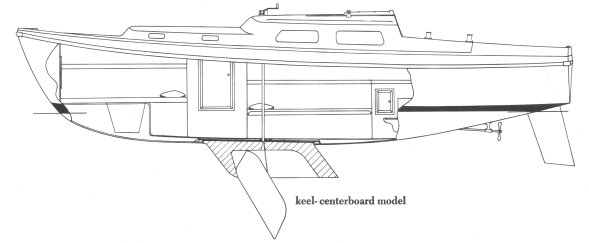

CORONADO 27 CB drawing

Sailboat Specifications


Hull Type:
Keel/CB & spade rudder
Rigging Type:
Masthead Sloop
LOA:
26.67 ft / 8.13 m
LWL:
22.00 ft / 6.71 m
S.A. (reported):
310.00 ft2 / 28.80 m2
Beam:
8.50 ft / 2.59 m
Draft (max):
6.17 ft / 1.88 m
Draft (min):
3.25 ft / 0.99 m
Displacement:
6,250 lb / 2,835 kg
Ballast:
2,600 lb / 1,179 kg
S.A./Disp.:
14.66
Bal./Disp.:
41.60
Disp./Len.:
262.04
Construction:
FG
Ballast Type:
Iron
First Built:
1970
Last Built:
# Built:
Builder:
Coronado Yachts (USA)
Designer:
William Tripp Jr.
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Westerbeke
Model:
Type:
Diesel
HP:
6

Sailboat Calculations

S.A./Disp.:
14.66
Bal./Disp.:
41.60
Disp./Len.:
262.04
Comfort Ratio:
23.86

Rig and Sail Particulars

I:
31.50 ft / 9.60 m
J:
10.50 ft / 3.20 m
P:
26.30 ft / 8.02 m
E:
11.00 ft / 3.35 m
SPL/TPS:
ISP:
S.A. Fore:
165.38 ft2 / 15.36 m2
S.A. Main:
144.65 ft2 / 13.44 m2
S.A. Total (100% Fore + Main Triangles)
310.03 ft2 / 28.80 m2
S.A./Disp. (calc.):
14.66
Est. Forestay Len.:
33.20 ft / 10.12 m

Sailboat Links

Builders:

Notes

Dimensions for keel/cb version. See CORONADO 27 for more details.



.
