CSY 44 (MID-COCKPIT)

CSY 44 (MID-COCKPIT)

Beta Marine

Beta Marine

Sailboat Specifications

Definitions
Hull Type: Fin with rudder on skeg
Rigging Type: Cutter
LOA: 44.00 ft / 13.41 m
LWL: 36.33 ft / 11.07 m
S.A. (reported): 906.00 ft² / 84.17 m²
Beam: 13.33 ft / 4.06 m
Displacement: 38,000.00 lb / 17,237 kg
Ballast: 14,000.00 lb / 6,350 kg
Max Draft: 6.50 ft / 1.98 m
Construction: FG
First Built: 1977
Last Built: 1980
Builder: CSY Yacht Corp.
Designer: Frank Hamlin/Peter Schmitt

KLSC Leaderboard

KLSC Leaderboard

Auxiliary Power/Tanks (orig. equip.)

Make: Perkins
Model: 4-154
Type: Diesel
HP: 62
Fuel: 100 gals / 379 L

Accomodations

Water: 400 gals / 1,514 L

Sailboat Calculations

Definitions
S.A. / Displ.: 12.88
Bal. / Displ.: 36.84
Disp: / Len: 353.78
Comfort Ratio: 48.30
Capsize Screening Formula: 1.59
S#: 1.11
Hull Speed: 8.08 kn
Pounds/Inch Immersion: 1,730.38 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

Rig and Sail Particulars

HELP
I: 52.00 ft / 15.85 m
J: 20.30 ft / 6.19 m
P: 44.50 ft / 13.56 m
E: 17.00 ft / 5.18 m
S.A. Fore: 527.80 ft² / 49.03 m²
S.A. Main: 378.25 ft² / 35.14 m²
S.A. Total (100% Fore + Main Triangles): 906.05 ft² / 84.17 m²
S.A./Displ. (calc.): 12.88
Est. Forestay Length: 55.82 ft / 17.01 m
Mast Height from DWL: 56.00 ft / 17.07 m

Sailboat Links

Designers: Peter Schmit
Builders: CSY (Caribbean Sailing Yachts)
Associations: CSY (Caribbean Sailing Yachts) history
Related Sailboats: ANTIGUA 44
Download Boat Record:

Notes

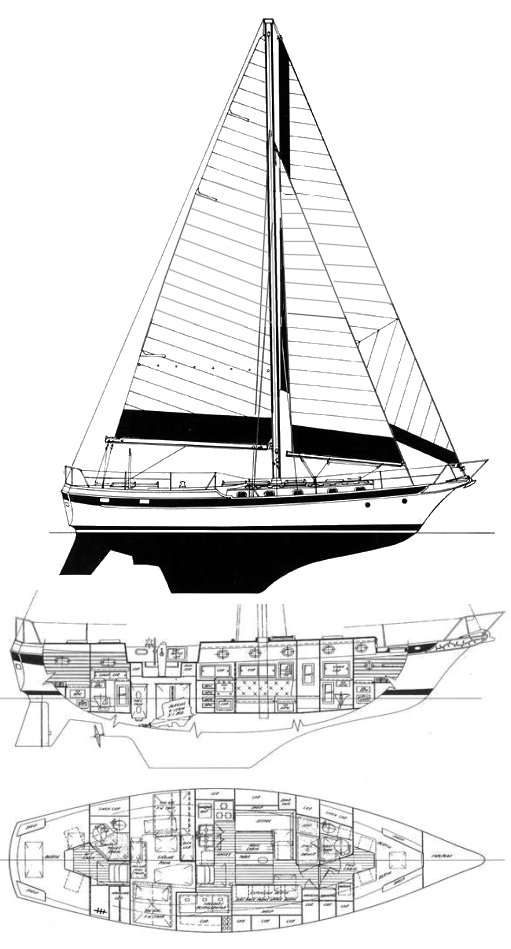

There were three version of the CSY 44: PILOT HOUSE, MID COCKPIT, and WALK THROUGH. Most popular was the MID-COCKPIT (shown here) or 'walk-over', built from 1977 to 1980 primarily for the charter trade.

The Pilot House design has an aft cockpit and a second second steering station. Most were delivered with the ketch rig. A shoal draft version draws 4.92'.

The Walk-through version provided access to the aft cabin through the galley area without coming on deck. These were normally delivered as cutters with a few rigged as ketches.
The CSY 44 was also sold under a number of other names including the CYGNET 44 and later, the ANTIQUA 44.
