CYCLADES 39.3 (BENETEAU)

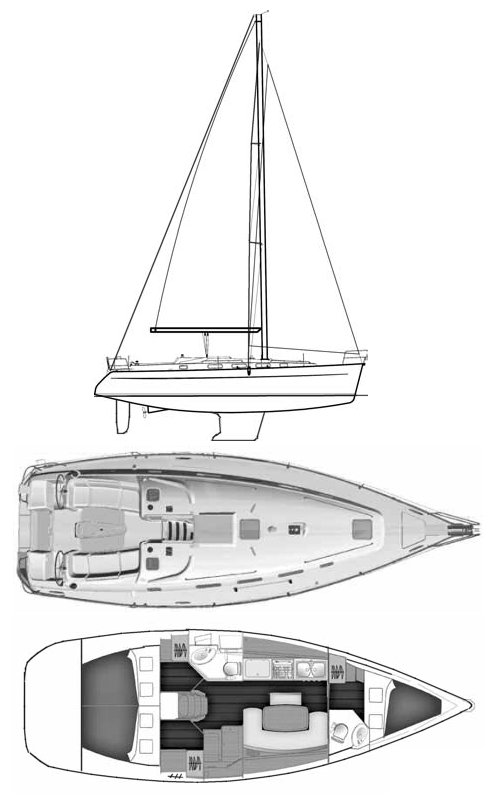

CYCLADES 39.3 (BENETEAU) photo CYCLADES 39.3 (BENETEAU) drawing

Sailboat Specifications


Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
LOA:
39.27 ft / 11.97 m
LWL:
35.00 ft / 10.67 m
Beam:
12.96 ft / 3.95 m
S.A. (reported):
639.00 ft2 / 59.37 m2
Draft (max):
6.23 ft / 1.90 m
Draft (min):
Displacement:
15,642 lb / 7,095 kg
Ballast:
4,619 lb / 2,095 kg
S.A./Disp.:
16.41
Bal./Disp.:
29.53
Disp./Len.:
162.87
Construction:
FG
Ballast Type:
Iron
First Built:
2007
Last Built:
# Built:
Builder:
Beneteau
Designer:
Berret/Racoupeau
Website:

Auxiliary Power/Tanks (orig. equip.)

Make:
Yanmar
Model:
Type:
Diesel
HP:
40
Water:
87 gals / 329 L
Fuel:
58 gals / 220 L

Sailboat Calculations

S.A./Disp.:
16.41
Bal./Disp.:
29.53
Disp./Len.:
162.87
Comfort Ratio:
21.98
Capsize Screening Formula:
2.08

Rig and Sail Particulars

I:
45.70 ft / 13.93 m
J:
13.55 ft / 4.13 m
P:
43.63 ft / 13.30 m
E:
15.09 ft / 4.60 m
SPL/TPS:
ISP:
S.A. Fore:
309.62 ft2 / 28.76 m2
S.A. Main:
329.19 ft2 / 30.58 m2
S.A. Total (100% Fore + Main Triangles)
638.81 ft2 / 59.35 m2
S.A./Disp. (calc.):
16.40
Est. Forestay Len.:
47.67 ft / 14.53 m

Sailboat Links

Designers:
Builders:

Notes

Probably based on the earlier BENETEAU 393/OCEANIS 393.
CYCLADES was a brand sold primarily to the charter trade.



.
