CYCLADES 50.5 (BENETEAU)

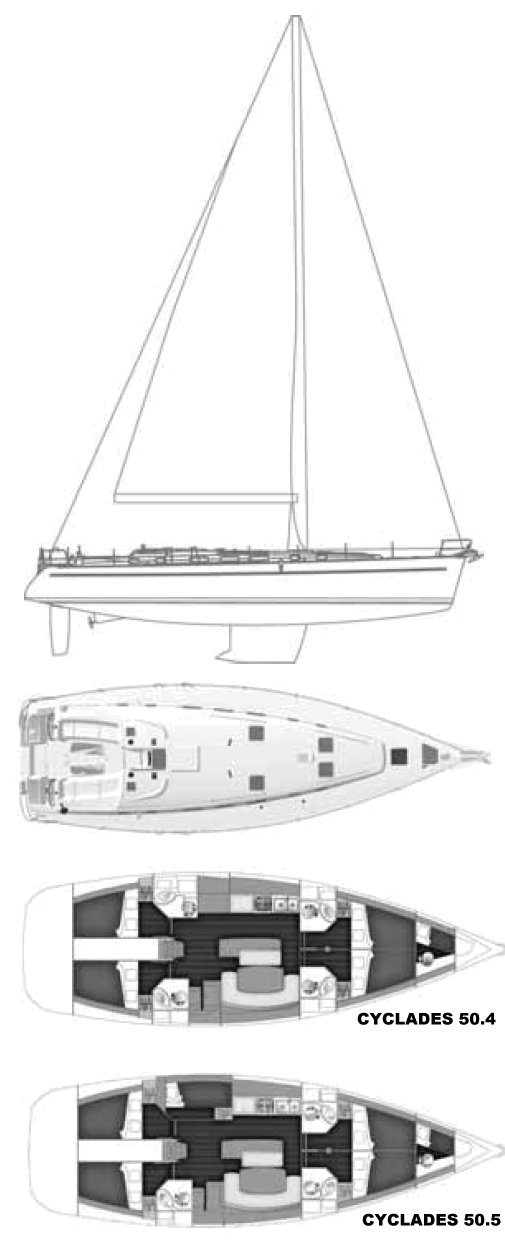

CYCLADES 50.5 (BENETEAU) drawing

Sailboat Specifications


Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
LOA:
51.34 ft / 15.65 m
LWL:
43.24 ft / 13.18 m
Beam:
16.08 ft / 4.90 m
S.A. (reported):
1,067.00 ft2 / 99.13 m2
Draft (max):
6.56 ft / 2.00 m
Draft (min):
Displacement:
27,954 lb / 12,680 kg
Ballast:
8,708 lb / 3,950 kg
S.A./Disp.:
18.61
Bal./Disp.:
31.15
Disp./Len.:
154.36
Construction:
FG
Ballast Type:
Iron
First Built:
2008
Last Built:
2010
# Built:
Builder:
Beneteau
Designer:
Berret-Racoupeau.
Website:

Auxiliary Power/Tanks (orig. equip.)

Make:
Yanmar
Model:
Type:
Diesel
HP:
110
Water:
259 gals / 980 L
Fuel:
106 gals / 401 L

Sailboat Calculations

S.A./Disp.:
18.61
Bal./Disp.:
31.15
Disp./Len.:
154.36
Comfort Ratio:
23.42
Capsize Screening Formula:
2.12

Rig and Sail Particulars

I:
59.87 ft / 18.25 m
J:
17.88 ft / 5.45 m
P:
54.92 ft / 16.74 m
E:
19.36 ft / 5.90 m
SPL/TPS:
ISP:
S.A. Fore:
535.24 ft2 / 49.73 m2
S.A. Main:
531.63 ft2 / 49.39 m2
S.A. Total (100% Fore + Main Triangles)
1,066.86 ft2 / 99.11 m2
S.A./Disp. (calc.):
18.61
Est. Forestay Len.:
62.48 ft / 19.04 m
Mast Height from DWL:
68.57 ft / 20.90 m

Sailboat Links

Designers:
Builders:

Notes

The same as CYCLADES 50.4 with slightly different interior.
Mostly sold to the charter trade.



.
