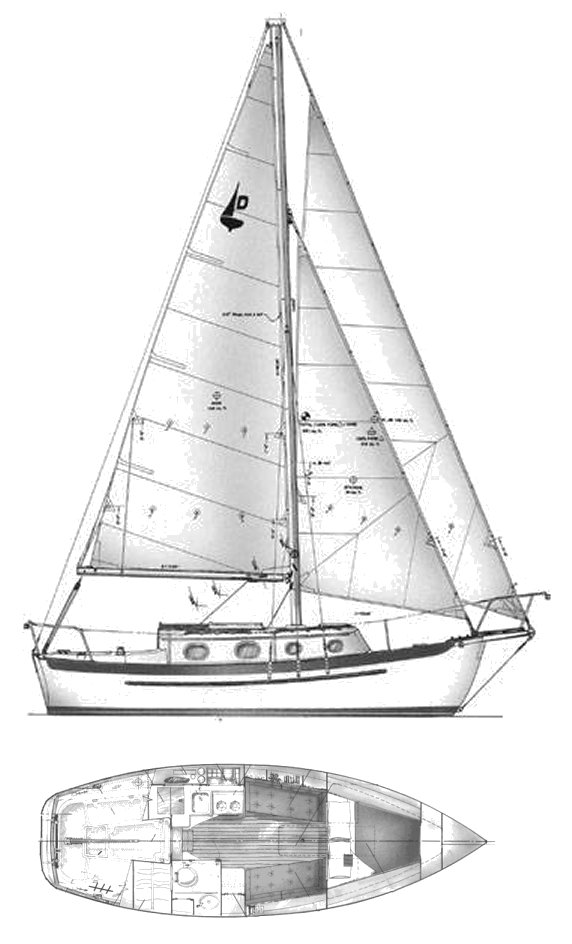

DANA 24 (PACIFIC SEACRAFT)

Sailboat Specifications

both US imperial metric

Hull Type:

Long Keel

Rigging Type:

Cutter

LOA:

27.25 ft / 8.31 m

LWL:

21.42 ft / 6.53 m

Beam:

8.58 ft / 2.62 m

S.A. (reported):

358.00 ft² / 33.26 m²

Draft (max):

3.83 ft / 1.17 m

Displacement:

8,000 lb / 3,629 kg

Ballast:

3,200 lb / 1,451 kg

S.A./Disp.:

14.37

Bal./Disp.:

40.00

Disp./Len.:

363.40

Construction:

FG

Ballast Type:

Lead

First Built:

1984

Last Built:

2007

Builder:

Pacific Seacraft (USA)

Designer:

W.I.B. Crealock

Auxiliary Power/Tanks (orig. equip.)

Make:

Yanmar

Model:

2GM20F

Type:

Diesel

HP:

18

Fuel:

18 gals / 68 L

Sailboat Calculations

Definitions

S.A./Disp.:

14.37

Bal./Disp.:

40.00

Disp./Len.:

363.40

Comfort Ratio:

30.46

Capsize Screening Formula:

1.72

S#:

1.17

Rig and Sail Particulars

help

I:

34.00 ft / 10.36 m

J:

12.25 ft / 3.73 m

P:

28.25 ft / 8.61 m

E:

10.83 ft / 3.30 m

S.A. Fore:

208.25 ft² / 19.35 m²

S.A. Main:

152.97 ft² / 14.21 m²

S.A. Total (100% Fore + Main Triangles)

361.22 ft² / 33.56 m²

S.A./Disp. (calc.):

14.50

Est. Forestay Len.:

36.14 ft / 11.02 m

Mast Height from DWL:

37.33 ft / 11.38 m

Accommodations

Headroom:

6.08 ft / 1.85 m

Water:

40 gals / 151 L

Sailboat Links

Designers:

William Crealock

Builders:

Pacific Seacraft

Download Boat Record:

PDF

Notes

LOD = 24.17 ft
Cutter rig sail area = 448 sqft
An additional 30 gal water was available.
PS shelved production of the D24's between 1999 and 2001.
