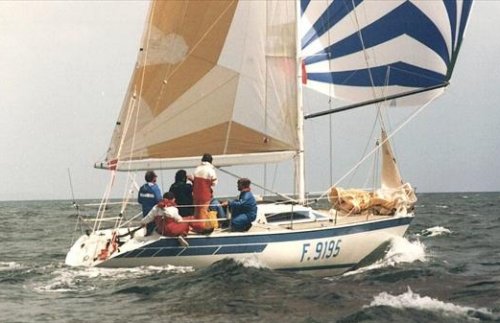

DB-2

Sailboat Specifications

both US imperial metric

Hull Type:

Fin w/spade rudder

Rigging Type:

Fractional Sloop

LOA:

33.14 ft / 10.10 m

LWL:

26.24 ft / 8.00 m

Beam:

11.15 ft / 3.40 m

S.A. (reported):

565.00 ft² / 52.49 m²

Draft (max):

6.23 ft / 1.90 m

Displacement:

6,945 lb / 3,150 kg

Ballast:

3,627 lb / 1,645 kg

S.A./Disp.:

24.91

Bal./Disp.:

52.22

Disp./Len.:

171.61

Construction:

Ballast Type:

Lead

First Built:

1981

Last Built:

1982

Builder:

Dehler (GER)

Designer:

E. G. van de Stadt/Cees van Tongeren

Auxiliary Power/Tanks (orig. equip.)

Make:

Yanmar

Type:

Diesel

Fuel:

10 gals / 38 L

Sailboat Calculations

Definitions

S.A./Disp.:

24.91

Bal./Disp.:

52.22

Disp./Len.:

171.61

Comfort Ratio:

15.27

Capsize Screening Formula:

2.34

S#:

4.00

Rig and Sail Particulars

help

38.55 ft / 11.75 m

11.64 ft / 3.55 m

43.30 ft / 13.20 m

15.75 ft / 4.80 m

S.A. Fore:

224.36 ft² / 20.84 m²

S.A. Main:

340.99 ft² / 31.68 m²

S.A. Total (100% Fore + Main Triangles)

565.35 ft² / 52.52 m²

S.A./Disp. (calc.):

24.93

Est. Forestay Len.:

40.27 ft / 12.27 m

Sailboat Links

Designers:

E. G. Van de Stadt

Builders:

Dehler Yachts

Associations:

IOR 3/4 ton

Related Sailboats:

DB-1

Download Boat Record:

PDF

Notes

An updated version of the DB1 (both listed as vds design #320), the DB2 design finished 1st, 2nd, 3rd and 5th at the 1984 International 3/4 ton Cup (Kiel Germany).
