DEFENDER 35

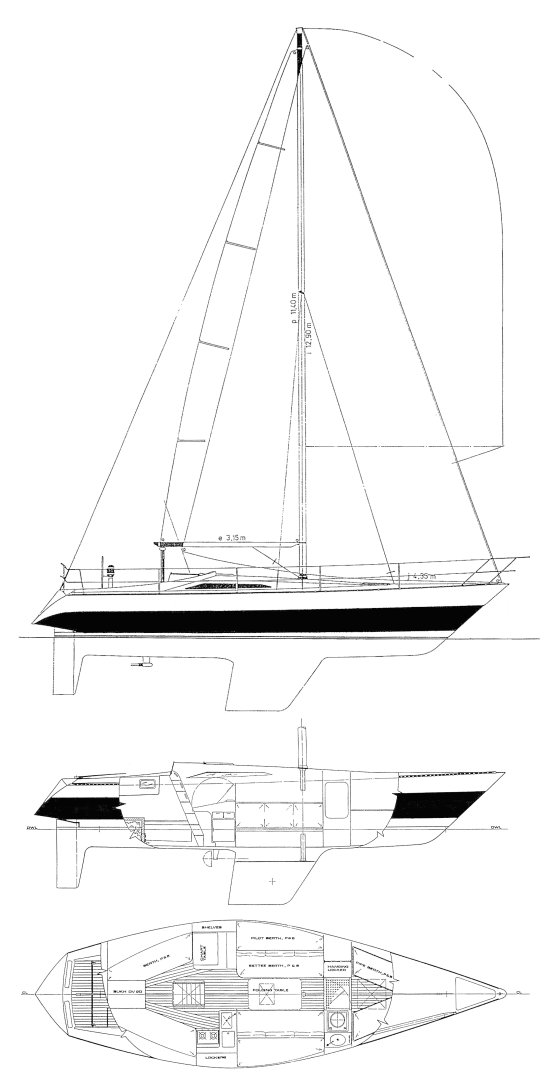

DEFENDER 35 drawing

Sailboat Specifications


Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
LOA:
35.27 ft / 10.75 m
LWL:
29.10 ft / 8.87 m
S.A. (reported):
495.00 ft2 / 45.99 m2
Beam:
10.76 ft / 3.28 m
Draft (max):
5.51 ft / 1.68 m
Draft (min):
Displacement:
8,999 lb / 4,082 kg
Ballast:
4,200 lb / 1,905 kg
S.A./Disp.:
18.37
Bal./Disp.:
46.67
Disp./Len.:
163.03
Construction:
FG
Ballast Type:
Lead
First Built:
1978
Last Built:
1985
# Built:
9
Builder:
F Dekker & Son (NL)
Designer:
Eva M. Hollman
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Volvo Penta
Model:
Type:
Diesel
HP:

Sailboat Calculations

S.A./Disp.:
18.37
Bal./Disp.:
46.67
Disp./Len.:
163.03
Comfort Ratio:
18.98

Rig and Sail Particulars

I:
42.32 ft / 12.90 m
J:
14.27 ft / 4.35 m
P:
37.40 ft / 11.40 m
E:
10.33 ft / 3.15 m
SPL/TPS:
ISP:
S.A. Fore:
301.95 ft2 / 28.05 m2
S.A. Main:
193.17 ft2 / 17.95 m2
S.A. Total (100% Fore + Main Triangles)
495.12 ft2 / 46.00 m2
S.A./Disp. (calc.):
18.37
Est. Forestay Len.:
44.66 ft / 13.61 m

Sailboat Links

Notes

Design as IOR 3/4 ton racer.



.
