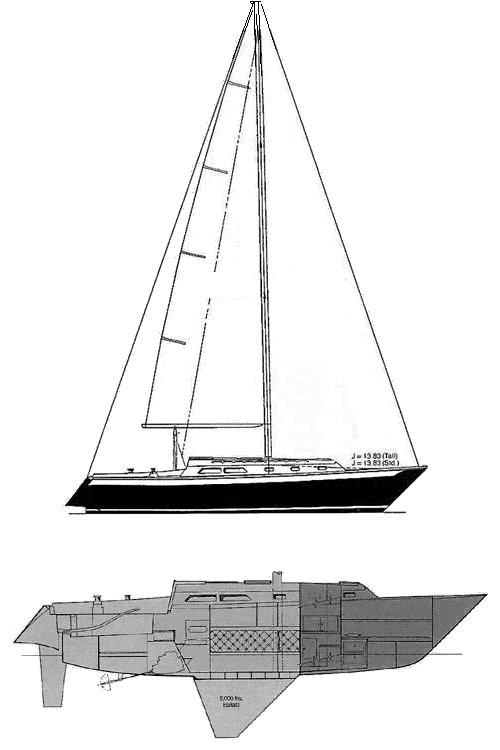

ERICSON 34T

Sailboat Specifications

both US imperial metric

Hull Type:

Fin w/spade rudder

Rigging Type:

Masthead Sloop

LOA:

33.67 ft / 10.26 m

LWL:

26.33 ft / 8.03 m

Beam:

10.92 ft / 3.33 m

S.A. (reported):

482.00 ft² / 44.78 m²

Draft (max):

5.92 ft / 1.80 m

Displacement:

10,000 lb / 4,536 kg

Ballast:

5,000 lb / 2,268 kg

S.A./Disp.:

16.67

Bal./Disp.:

50.00

Disp./Len.:

244.57

Construction:

FG

Ballast Type:

Lead

First Built:

1978

Builder:

Ericson Yachts (USA)

Designer:

Bruce King

Sailboat Calculations

Definitions

S.A./Disp.:

16.67

Bal./Disp.:

50.00

Disp./Len.:

244.57

Comfort Ratio:

22.43

Capsize Screening Formula:

2.03

S#:

2.24

Rig and Sail Particulars

help

I:

43.00 ft / 13.11 m

J:

13.83 ft / 4.22 m

P:

38.00 ft / 11.58 m

E:

10.37 ft / 3.16 m

S.A. Fore:

297.35 ft² / 27.62 m²

S.A. Main:

197.03 ft² / 18.30 m²

S.A. Total (100% Fore + Main Triangles)

494.38 ft² / 45.93 m²

S.A./Disp. (calc.):

17.10

Est. Forestay Len.:

45.17 ft / 13.77 m

Sailboat Links

Designers:

Bruce King

Builders:

Ericson Yachts (USA)

Associations:

Ericson Yachts Information

Related Sailboats:

ERICSON 34

Download Boat Record:

PDF

Notes

The ''T'' is for the trunk cabin version of this IOR influenced ERICSON 34. See ERICSON 34 X which is the flush deck version.

TALL RIG:
I: 45.00' / 13.72m
J: 13.83' / 4.22m
P: 39.00' / 11.89m
E: 11.22' / 3.42m
Tot. SA (100%): 529.97 ft2 / 49.23 m2
