EYGTHENE 24

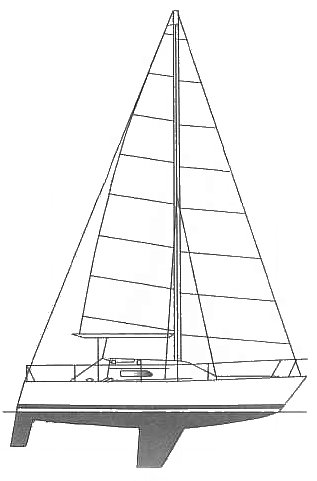

EYGTHENE 24 photo EYGTHENE 24 drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
LOA:
23.78 ft / 7.25 m
LWL:
20.50 ft / 6.25 m
Beam:
9.60 ft / 2.93 m
S.A. (reported):
265.00 ft2 / 24.62 m2
Draft (max):
4.60 ft / 1.40 m
Draft (min):
Displacement:
4,300 lb / 1,950 kg
Ballast:
2,250 lb / 1,021 kg
S.A./Disp.:
16.08
Bal./Disp.:
52.33
Disp./Len.:
222.82
Construction:
FG
Ballast Type:
Iron
First Built:
1974
Last Built:
# Built:
Builder:
Master Marine (UK)
Designer:
Ron Holland
Website:

Sailboat Calculations

S.A./Disp.:
16.08
Bal./Disp.:
52.33
Disp./Len.:
222.82
Comfort Ratio:
15.21
Capsize Screening Formula:
2.36

Rig and Sail Particulars

I:
31.27 ft / 9.53 m
J:
10.24 ft / 3.12 m
P:
26.34 ft / 8.03 m
E:
8.00 ft / 2.44 m
SPL/TPS:
ISP:
S.A. Fore:
160.10 ft2 / 14.87 m2
S.A. Main:
105.36 ft2 / 9.79 m2
S.A. Total (100% Fore + Main Triangles)
265.46 ft2 / 24.66 m2
S.A./Disp. (calc.):
16.11
Est. Forestay Len.:
32.90 ft / 10.03 m

Sailboat Links

Notes

Production version of the Holland 1973 1/4 ton Cup winner "Eygthene". Twin keel version was available.
The same design was available as KIWI 24 in the US, HOLLAND 24 in Australia.
Rig Dims. from ORC cert.
