FIBAGO CX

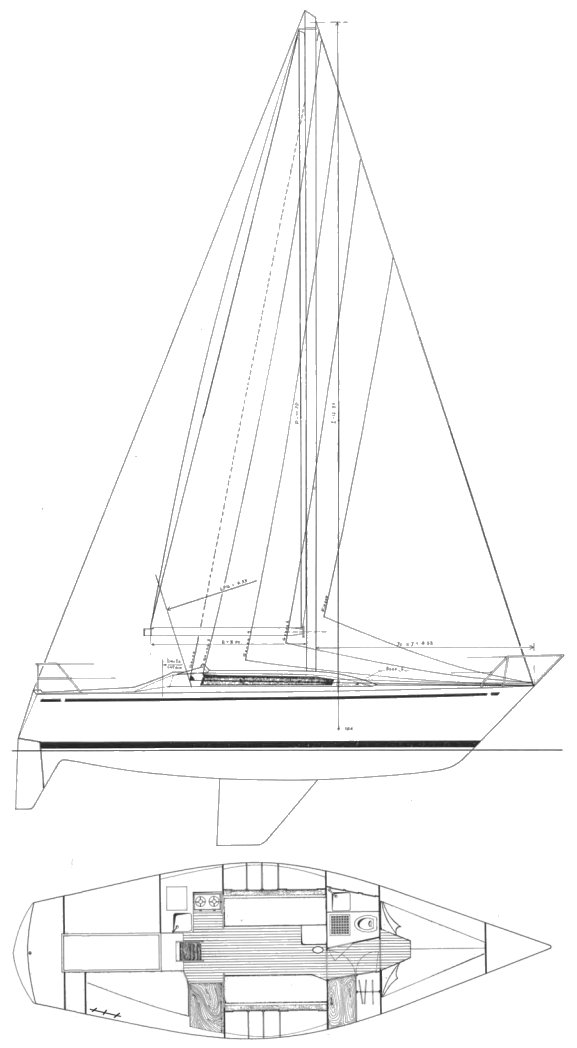

FIBAGO CX photo FIBAGO CX drawing

Sailboat Specifications


Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
LOA:
33.14 ft / 10.10 m
LWL:
29.04 ft / 8.85 m
S.A. (reported):
484.00 ft2 / 44.97 m2
Beam:
10.83 ft / 3.30 m
Draft (max):
5.74 ft / 1.75 m
Draft (min):
Displacement:
9,810 lb / 4,450 kg
Ballast:
4,299 lb / 1,950 kg
S.A./Disp.:
16.96
Bal./Disp.:
43.82
Disp./Len.:
178.83
Construction:
FG
Ballast Type:
First Built:
1975
Last Built:
1979
# Built:
Builder:
Fibago Italia (ITA)
Designer:
Riccardo Baffigo
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Farymann
Model:
Type:
Diesel
HP:
22

Sailboat Calculations

S.A./Disp.:
16.96
Bal./Disp.:
43.82
Disp./Len.:
178.83
Comfort Ratio:
20.97

Rig and Sail Particulars

I:
42.58 ft / 12.98 m
J:
13.84 ft / 4.22 m
P:
38.39 ft / 11.70 m
E:
9.84 ft / 3.00 m
SPL/TPS:
ISP:
S.A. Fore:
294.65 ft2 / 27.37 m2
S.A. Main:
188.88 ft2 / 17.55 m2
S.A. Total (100% Fore + Main Triangles)
483.53 ft2 / 44.92 m2
S.A./Disp. (calc.):
16.94
Est. Forestay Len.:
44.77 ft / 13.65 m

Sailboat Links

Associations:

Notes

IOR 3/4 ton.



.
