FINNGULF 34

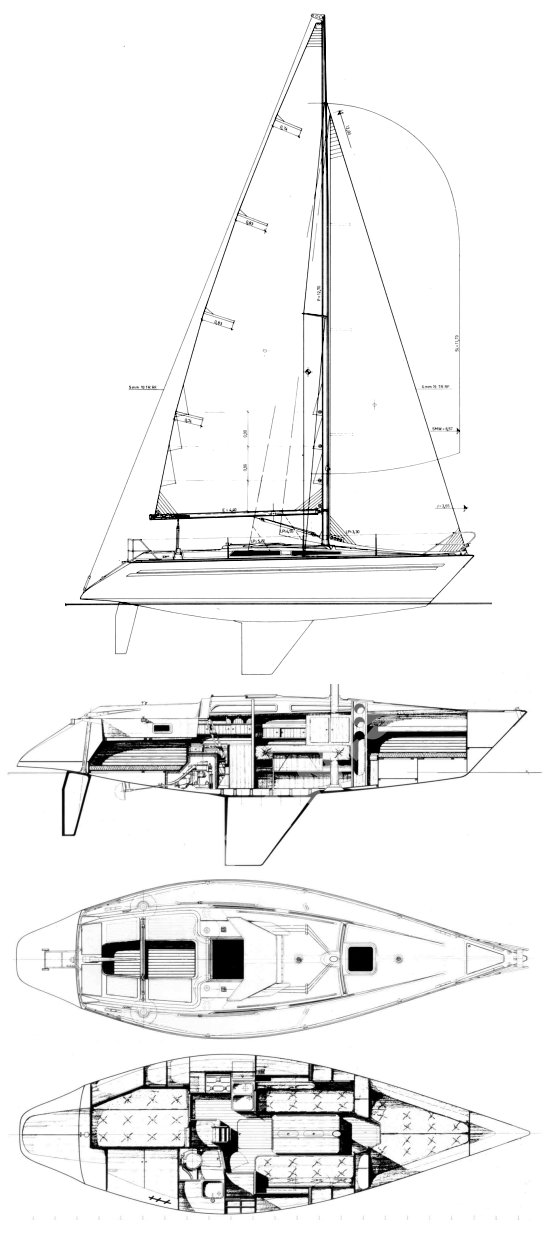

FINNGULF 34 drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
LOA:
34.22 ft / 10.43 m
LWL:
26.25 ft / 8.00 m
S.A. (reported):
559.00 ft2 / 51.93 m2
Beam:
10.70 ft / 3.26 m
Draft (max):
6.17 ft / 1.88 m
Draft (min):
Displacement:
9,700 lb / 4,400 kg
Ballast:
4,630 lb / 2,100 kg
S.A./Disp.:
19.73
Bal./Disp.:
47.73
Disp./Len.:
239.41
Construction:
FG
Ballast Type:
First Built:
1980
Last Built:
1985
# Built:
14
Builder:
Finngulf Yachts
Designer:
Hakan Södergren
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Volvo Penta
Model:
2002
Type:
Diesel
HP:

Sailboat Calculations

S.A./Disp.:
19.73
Bal./Disp.:
47.73
Disp./Len.:
239.41
Comfort Ratio:
22.27

Rig and Sail Particulars

I:
38.24 ft / 11.66 m
J:
11.94 ft / 3.64 m
P:
41.67 ft / 12.70 m
E:
15.35 ft / 4.68 m
SPL/TPS:
ISP:
S.A. Fore:
228.29 ft2 / 21.21 m2
S.A. Main:
319.82 ft2 / 29.71 m2
S.A. Total (100% Fore + Main Triangles)
548.11 ft2 / 50.92 m2
S.A./Disp. (calc.):
19.35
Est. Forestay Len.:
40.06 ft / 12.21 m

Sailboat Links

Designers:
Builders:
Associations:

Notes

Prototype designed as IOR 3/4 ton racer. Similar to ATHENA 34. Rig dimensions from ORC cert.



.
