FIRST 325 (BENETEAU)

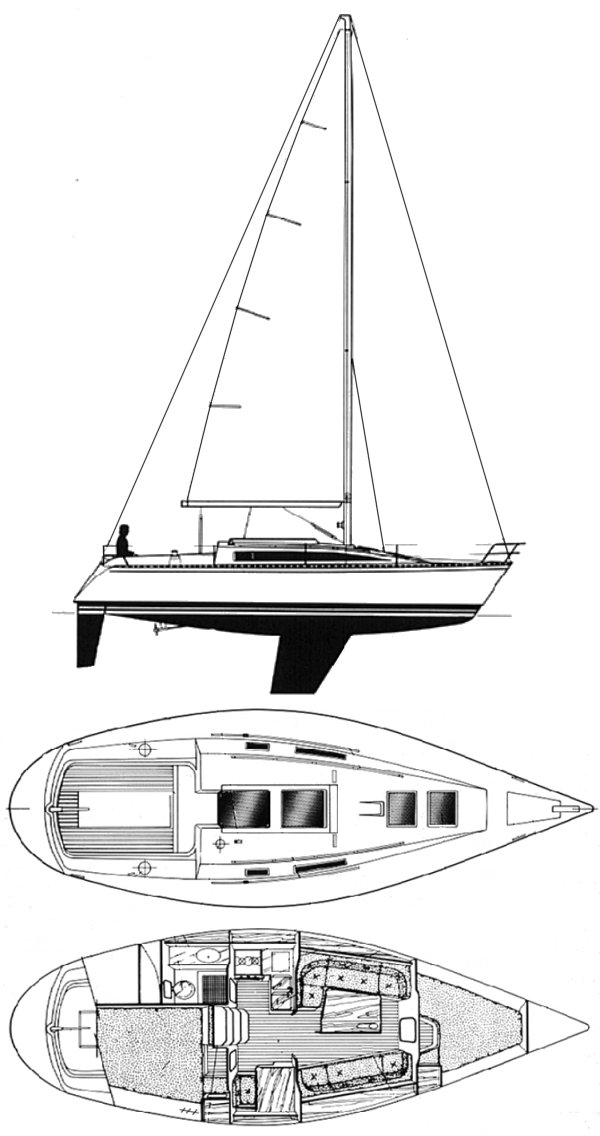

FIRST 325 (BENETEAU) drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
LOA:
32.48 ft / 9.90 m
LWL:
27.88 ft / 8.50 m
S.A. (reported):
440.00 ft2 / 40.88 m2
Beam:
11.05 ft / 3.37 m
Draft (max):
5.80 ft / 1.77 m
Draft (min):
Displacement:
9,700 lb / 4,400 kg
Ballast:
3,747 lb / 1,700 kg
S.A./Disp.:
15.53
Bal./Disp.:
38.63
Disp./Len.:
199.82
Construction:
FG
Ballast Type:
First Built:
1985
Last Built:
# Built:
Builder:
Beneteau (FRA)
Designer:
Jean Berret
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Volvo
Model:
2002
Type:
Diesel
HP:
Water:
53 gals.
Fuel:
15 gals.

Sailboat Calculations

S.A./Disp.:
15.53
Bal./Disp.:
38.63
Disp./Len.:
199.82
Comfort Ratio:
20.89

Rig and Sail Particulars

I:
40.30 ft / 12.28 m
J:
12.04 ft / 3.67 m
P:
34.80 ft / 10.61 m
E:
11.48 ft / 3.50 m
SPL/TPS:
ISP:
S.A. Fore:
242.61 ft2 / 22.54 m2
S.A. Main:
199.75 ft2 / 18.56 m2
S.A. Total (100% Fore + Main Triangles)
442.36 ft2 / 41.10 m2
S.A./Disp. (calc.):
15.61
Est. Forestay Len.:
42.06 ft / 12.82 m

Sailboat Links

Designers:
Builders:

Notes

First promoted in US as F325. Shoal draft: 4.40'/1.34m TALL RIG: I: 41.66'/12.70m J: 12.04'/3.67m P: 35.26'/10.75m E: 11.48'/3.50m SA (100%):453.19 ft2/42.10 m2 Displacement: 8390 lbs./3806 kgs. Ballast: 3748 lbs./1700 kgs.



.
