FIRST 32S5 (BENETEAU)

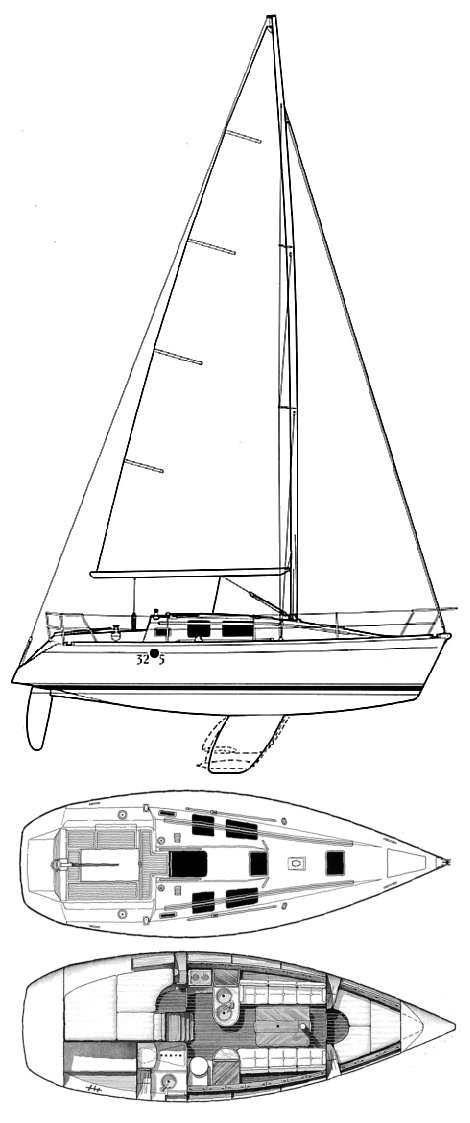

FIRST 32S5 (BENETEAU) photo FIRST 32S5 (BENETEAU) drawing

Sailboat Specifications


Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
LOA:
32.50 ft / 9.91 m
LWL:
27.83 ft / 8.48 m
S.A. (reported):
455.00 ft2 / 42.27 m2
Beam:
10.83 ft / 3.30 m
Draft (max):
6.00 ft / 1.83 m
Draft (min):
Displacement:
9,260 lb / 4,200 kg
Ballast:
2,980 lb / 1,352 kg
S.A./Disp.:
16.56
Bal./Disp.:
32.18
Disp./Len.:
191.79
Construction:
FG
Ballast Type:
Lead
First Built:
1989
Last Built:
1994
# Built:
Builder:
Beneteau
Designer:
Jean Berret/ Philippe Starck
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Volvo Penta
Model:
Type:
Diesel
HP:
27
Water:
40 gals.
Fuel:
18 gals.

Sailboat Calculations

S.A./Disp.:
16.56
Bal./Disp.:
32.18
Disp./Len.:
191.79
Comfort Ratio:
20.50

Rig and Sail Particulars

I:
38.40 ft / 11.70 m
J:
9.70 ft / 2.96 m
P:
38.90 ft / 11.86 m
E:
13.80 ft / 4.21 m
SPL/TPS:
ISP:
S.A. Fore:
186.24 ft2 / 17.30 m2
S.A. Main:
268.41 ft2 / 24.94 m2
S.A. Total (100% Fore + Main Triangles)
454.65 ft2 / 42.24 m2
S.A./Disp. (calc.):
16.55
Est. Forestay Len.:
39.61 ft / 12.07 m
