FIRST 375 (BENETEAU)

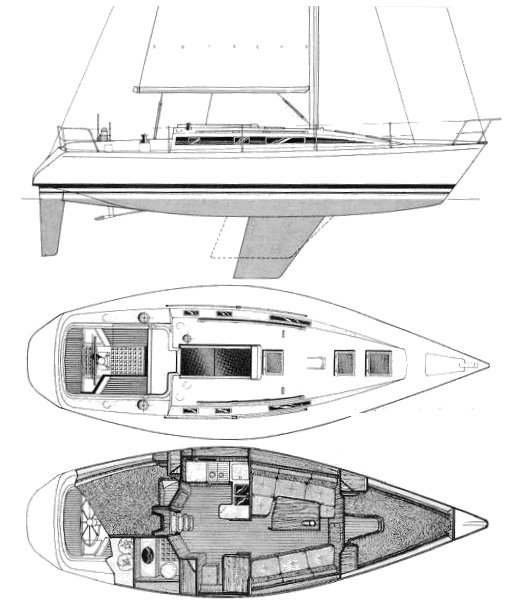

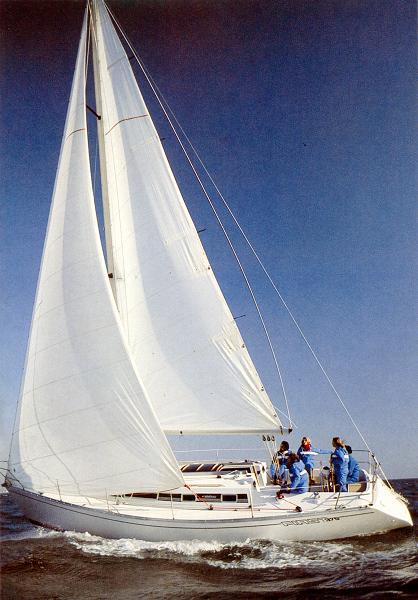

FIRST 375 (BENETEAU) photo FIRST 375 (BENETEAU) drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
LOA:
37.08 ft / 11.30 m
LWL:
33.10 ft / 10.09 m
S.A. (reported):
648.00 ft2 / 60.20 m2
Beam:
12.33 ft / 3.76 m
Draft (max):
6.50 ft / 1.98 m
Draft (min):
Displacement:
16,975 lb / 7,700 kg
Ballast:
5,412 lb / 2,455 kg
S.A./Disp.:
15.76
Bal./Disp.:
31.88
Disp./Len.:
208.97
Construction:
FG
Ballast Type:
First Built:
1985
Last Built:
# Built:
Builder:
Beneteau (FRA)
Designer:
Beret
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Volvo Penta
Model:
Type:
Diesel
HP:
Water:
36 gals.
Fuel:
25 gals.

Sailboat Calculations

S.A./Disp.:
15.76
Bal./Disp.:
31.88
Disp./Len.:
208.97
Comfort Ratio:
26.96

Rig and Sail Particulars

I:
49.00 ft / 14.94 m
J:
13.70 ft / 4.18 m
P:
43.10 ft / 13.14 m
E:
14.50 ft / 4.42 m
SPL/TPS:
ISP:
S.A. Fore:
335.65 ft2 / 31.18 m2
S.A. Main:
312.48 ft2 / 29.03 m2
S.A. Total (100% Fore + Main Triangles)
648.13 ft2 / 60.21 m2
S.A./Disp. (calc.):
15.76
Est. Forestay Len.:
50.88 ft / 15.51 m

Sailboat Links

Designers:
Builders:

Notes

Shoal draft: 5.60'/1.71m ALT. SHORT RIG: I: 47.60'/14.51m J: 13.70'/4.18m P: 41.70'/12.71m E: 13.80'/4.21m SA 100%: 613.79 ft2/57.02 m2



.
