FIRST 45 (BENETEAU - BRIAND)

Sailboat Specifications

both US imperial metric

Hull Type:

Fin w/bulb & spade rudder

Rigging Type:

Fractional Sloop

LOA:

46.16 ft / 14.07 m

LWL:

38.58 ft / 11.76 m

Beam:

13.75 ft / 4.19 m

S.A. (reported):

1,002.00 ft² / 93.09 m²

Draft (max):

7.83 ft / 2.39 m

Displacement:

23,369 lb / 10,600 kg

Ballast:

8,543 lb / 3,875 kg

S.A./Disp.:

19.69

Bal./Disp.:

36.56

Disp./Len.:

181.68

Construction:

FG

First Built:

2008

Builder:

Beneteau

Designer:

Briand Design

Auxiliary Power/Tanks (orig. equip.)

Make:

Yanmar

Model:

4JH4AE

Type:

Diesel

HP:

54

Fuel:

53 gals / 201 L

Sailboat Calculations

Definitions

S.A./Disp.:

19.69

Bal./Disp.:

36.56

Disp./Len.:

181.68

Comfort Ratio:

26.95

Capsize Screening Formula:

1.93

S#:

3.26

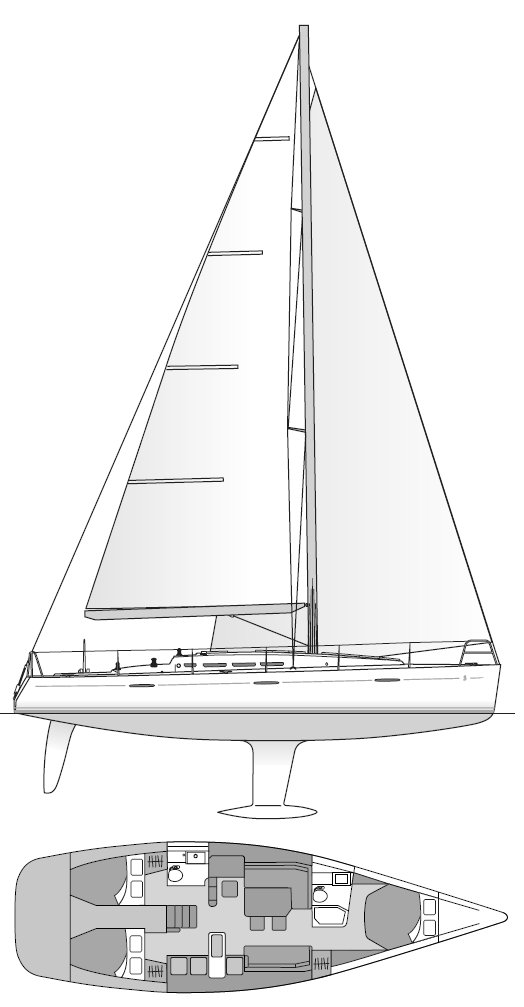

Rig and Sail Particulars

help

I:

57.42 ft / 17.50 m

J:

17.42 ft / 5.31 m

P:

55.75 ft / 16.99 m

E:

18.00 ft / 5.49 m

S.A. Fore:

500.13 ft² / 46.46 m²

S.A. Main:

501.75 ft² / 46.61 m²

S.A. Total (100% Fore + Main Triangles)

1,001.88 ft² / 93.08 m²

S.A./Disp. (calc.):

19.69

Est. Forestay Len.:

60.00 ft / 18.29 m

Accommodations

Water:

140 gals / 530 L

Sailboat Links

Designers:

Philippe Briand

Builders:

Beneteau

Download Boat Record:

PDF

Notes

Optional Deep Keel: draft = 9.0'/2.74m Ballast = 8543 lbs./3874 kg
