FISHERS ISLAND 31

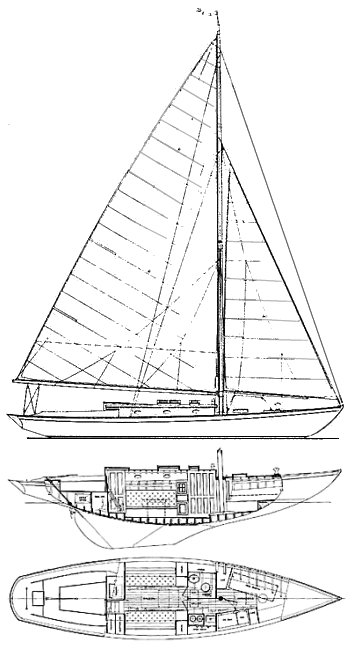

FISHERS ISLAND 31 photo FISHERS ISLAND 31 drawing

Sailboat Specifications


Hull Type:
Long Keel
Rigging Type:
Fractional Sloop
LOA:
43.50 ft / 13.26 m
LWL:
31.50 ft / 9.60 m
Beam:
10.58 ft / 3.22 m
S.A. (reported):
856.00 ft2 / 79.53 m2
Draft (max):
6.00 ft / 1.83 m
Draft (min):
Displacement:
18,000 lb / 8,165 kg
Ballast:
S.A./Disp.:
20.02
Bal./Disp.:
Disp./Len.:
257.09
Construction:
Wood
Ballast Type:
First Built:
1928
Last Built:
1946
# Built:
14
Builder:
Herreshoff Manufacturing Co. (USA)
Designer:
Sidney Herreshoff
Website:

Sailboat Calculations

S.A./Disp.:
20.02
Bal./Disp.:
Disp./Len.:
257.09
Comfort Ratio:
34.24
Capsize Screening Formula:
1.62

Rig and Sail Particulars

I:
41.00 ft / 12.50 m
J:
16.00 ft / 4.88 m
P:
48.00 ft / 14.63 m
E:
22.00 ft / 6.71 m
SPL/TPS:
ISP:
S.A. Fore:
328.00 ft2 / 30.47 m2
S.A. Main:
528.00 ft2 / 49.05 m2
S.A. Total (100% Fore + Main Triangles)
856.00 ft2 / 79.53 m2
S.A./Disp. (calc.):
20.02
Est. Forestay Len.:
44.01 ft / 13.41 m

Sailboat Links

Notes

Conceived as a racing class for summer residents of Fishers Island, NY USA. Herreshoff Manufacturing delivered the first boat just before the stock market crash of 1929 and production of the first 12 ended just one year later.
At least one of the original boats survives and has been on display at Herreshoff Museum.
