FORTUNE 30

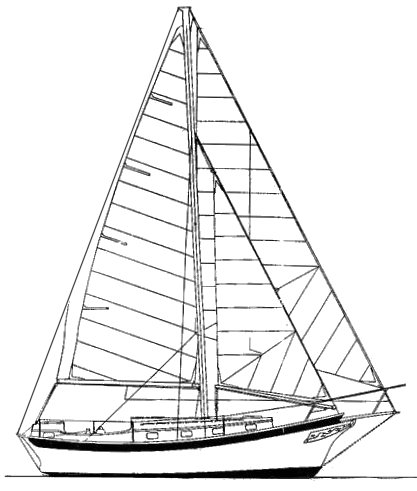

FORTUNE 30 drawing

Sailboat Specifications


Hull Type:
Fin with rudder on skeg
Rigging Type:
Cutter
LOA:
30.00 ft / 9.14 m
LWL:
22.67 ft / 6.91 m
Beam:
10.50 ft / 3.20 m
S.A. (reported):
470.00 ft2 / 43.66 m2
Draft (max):
4.00 ft / 1.22 m
Draft (min):
Displacement:
10,300 lb / 4,672 kg
Ballast:
3,000 lb / 1,361 kg
S.A./Disp.:
15.94
Bal./Disp.:
29.13
Disp./Len.:
394.67
Construction:
FG
Ballast Type:
First Built:
1974
Last Built:
# Built:
Builder:
Cooper Enterprises/Philbrooks Shipyard
Designer:
Stan Huntingford
Website:

Auxiliary Power/Tanks (orig. equip.)

Make:
Volvo
Model:
Type:
Diesel
HP:
Water:
50 gals / 189 L
Fuel:
40 gals / 151 L

Sailboat Calculations

S.A./Disp.:
15.94
Bal./Disp.:
29.13
Disp./Len.:
394.67
Comfort Ratio:
27.93
Capsize Screening Formula:
1.93

Sailboat Links

Notes

The FORTUNE 30 was the brainchild of Canadian TV weather man, Bob Fortune.
Initially the hulls were molded by Cooper Enterprises (CAN) and finished by a number of yards and individuals.
