FRANCIS DRAKE 37

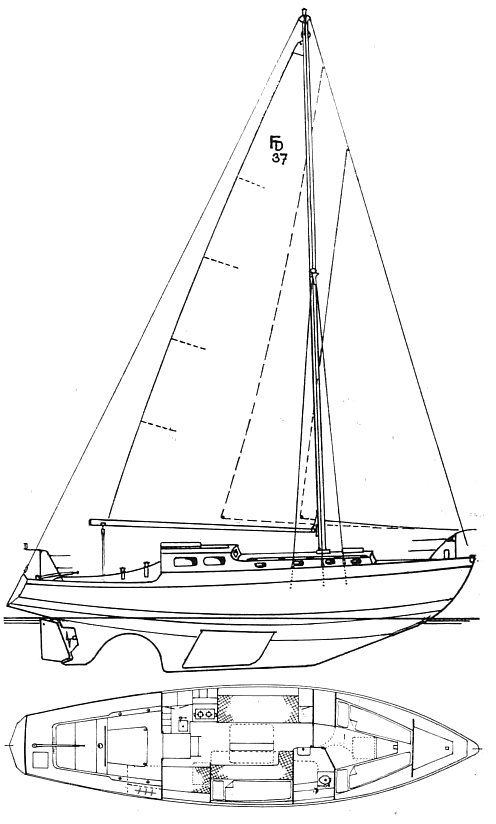

FRANCIS DRAKE 37 drawing

Sailboat Specifications


Hull Type:
Triple Keel
Rigging Type:
Masthead Sloop
LOA:
37.00 ft / 11.28 m
LWL:
29.45 ft / 8.98 m
S.A. (reported):
506.00 ft2 / 47.01 m2
Beam:
9.60 ft / 2.93 m
Draft (max):
4.25 ft / 1.30 m
Draft (min):
Displacement:
14,000 lb / 6,350 kg
Ballast:
6,220 lb / 2,821 kg
S.A./Disp.:
13.99
Bal./Disp.:
44.43
Disp./Len.:
244.69
Construction:
Wood/Steel
Ballast Type:
Iron
First Built:
1970
Last Built:
# Built:
Builder:
Designer:
Maurice Griffiths
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Model:
Type:
Diesel
HP:

Sailboat Calculations

S.A./Disp.:
13.99
Bal./Disp.:
44.43
Disp./Len.:
244.69
Comfort Ratio:
33.54
