SailboatData.com - FRERS 41 Sailboat

FRERS 41

Sailboat Specifications

both US imperial metric

Hull Type:

Fin w/spade rudder

Rigging Type:

Masthead Sloop

LOA:

40.50 ft / 12.34 m

LWL:

31.58 ft / 9.63 m

Beam:

13.08 ft / 3.99 m

S.A. (reported):

775.00 ft² / 72.00 m²

Draft (max):

7.25 ft / 2.21 m

Displacement:

15,950 lb / 7,235 kg

Ballast:

6,600 lb / 2,994 kg

S.A./Disp.:

19.64

Bal./Disp.:

41.38

Disp./Len.:

226.09

Construction:

Ballast Type:

Lead

First Built:

1987

Builder:

Carroll Marine

Designer:

German Frers

Auxiliary Power/Tanks (orig. equip.)

Make:

Yanmar

Type:

Diesel

HP:

Fuel:

25 gals / 95 L

Sailboat Calculations

Definitions

S.A./Disp.:

19.64

Bal./Disp.:

41.38

Disp./Len.:

226.09

Comfort Ratio:

23.44

Capsize Screening Formula:

2.08

S#:

2.68

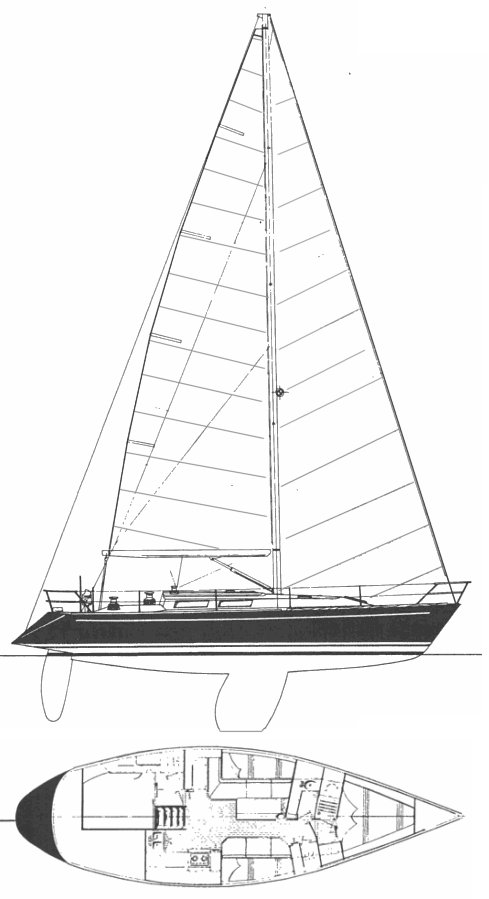

Rig and Sail Particulars

help

53.80 ft / 16.40 m

15.80 ft / 4.82 m

47.30 ft / 14.42 m

14.80 ft / 4.51 m

S.A. Fore:

425.02 ft² / 39.49 m²

S.A. Main:

350.02 ft² / 32.52 m²

S.A. Total (100% Fore + Main Triangles)

775.04 ft² / 72.00 m²

S.A./Disp. (calc.):

19.64

Est. Forestay Len.:

56.07 ft / 17.09 m

Accommodations

Water:

60 gals / 227 L

Sailboat Links

Designers:

German Frers

Builders:

Carroll Marine

Download Boat Record:

PDF

Notes

Tall rig:
I: 55.4'
J: 15.8'
P: 48.9'
E: 14.8'
800 tot. sq.ft.

Wing keel:
draft: 5.5'
