GEMINI (CAPE COD)

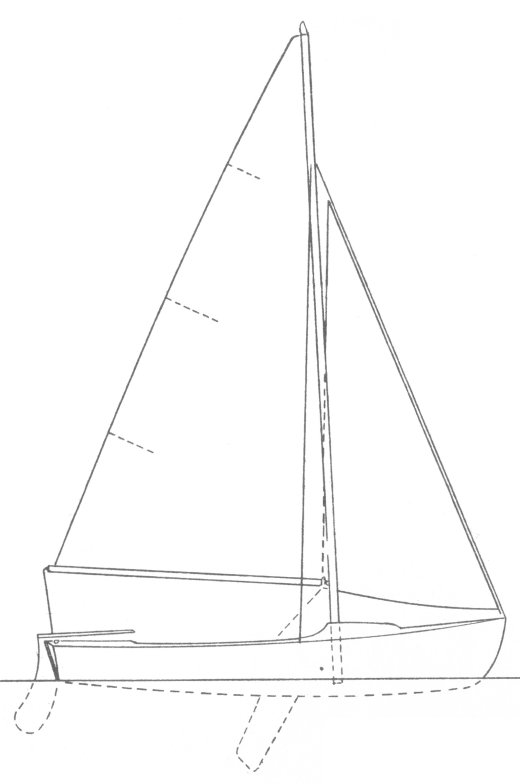

GEMINI (CAPE COD) photo GEMINI (CAPE COD) drawing

Sailboat Specifications


Hull Type:
Twin Centerboards
Rigging Type:
Fractional Sloop
LOA:
16.08 ft / 4.90 m
LWL:
14.75 ft / 4.50 m
S.A. (reported):
140.00 ft2 / 13.01 m2
Beam:
5.58 ft / 1.70 m
Draft (max):
3.33 ft / 1.01 m
Draft (min):
0.58 ft / 0.18 m
Displacement:
440 lb / 200 kg
Ballast:
S.A./Disp.:
38.77
Bal./Disp.:
Disp./Len.:
61.21
Construction:
Wood/FG
Ballast Type:
First Built:
1955
Last Built:
# Built:
150
Builder:
Cape Cod Shipbuilding (USA)
Designer:
Sidney Herreshoff
Website:

Sailboat Calculations

S.A./Disp.:
38.77
Bal./Disp.:
Disp./Len.:
61.21
Comfort Ratio:
4.54

Sailboat Links

Notes

Originally built by Herreshoff Manufacturing. Features twin, side by side, centerboards.



.
