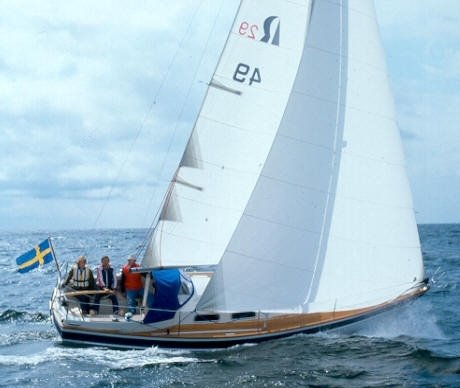

HALLBERG-RASSY 29

Sailboat Specifications

both US imperial metric

Hull Type:

Fin with rudder on skeg

Rigging Type:

Masthead Sloop

LOA:

29.17 ft / 8.89 m

LWL:

23.80 ft / 7.25 m

Beam:

9.25 ft / 2.82 m

S.A. (reported):

392.00 ft² / 36.42 m²

Draft (max):

5.25 ft / 1.60 m

Displacement:

8,380 lb / 3,801 kg

Ballast:

3,860 lb / 1,751 kg

S.A./Disp.:

15.25

Bal./Disp.:

46.06

Disp./Len.:

277.50

Construction:

FG

Ballast Type:

Iron

First Built:

1982

Last Built:

1994

# Built:

571

Builder:

Hallberg-Rassy (SWE)

Designer:

Olle Enderlein / Christoph Rassy

Auxiliary Power/Tanks (orig. equip.)

Make:

Volvo Penta

Model:

2002 S120B

Type:

Diesel

HP:

18

Fuel:

16 gals / 61 L

Sailboat Calculations

Definitions

S.A./Disp.:

15.25

Bal./Disp.:

46.06

Disp./Len.:

277.50

Comfort Ratio:

26.32

Capsize Screening Formula:

1.82

S#:

1.78

Rig and Sail Particulars

help

I:

12.60 ft / 3.84 m

J:

33.50 ft / 10.21 m

P:

34.50 ft / 10.52 m

E:

10.50 ft / 3.20 m

S.A. Fore:

211.05 ft² / 19.61 m²

S.A. Main:

181.13 ft² / 16.83 m²

S.A. Total (100% Fore + Main Triangles)

392.18 ft² / 36.43 m²

S.A./Disp. (calc.):

15.26

Est. Forestay Len.:

35.79 ft / 10.91 m

Accommodations

Water:

32 gals / 121 L
