HALLBERG-RASSY 54

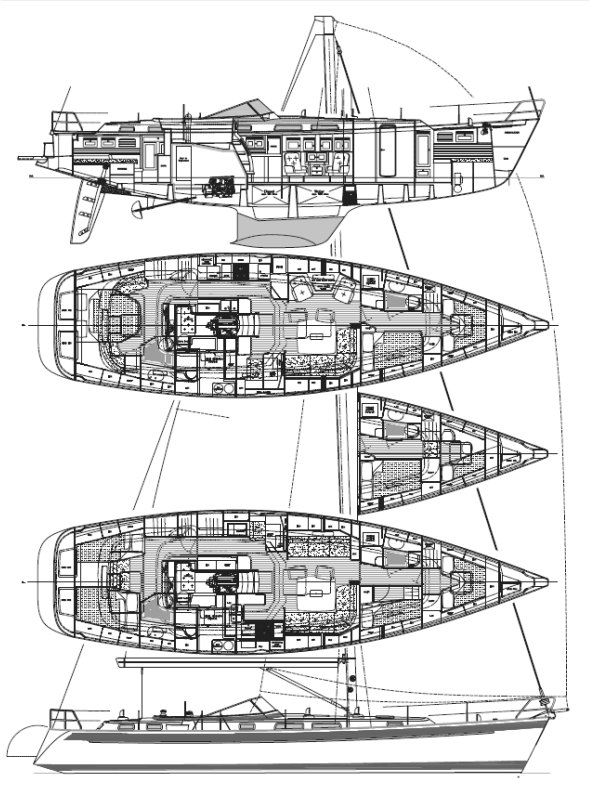

HALLBERG-RASSY 54 photo HALLBERG-RASSY 54 drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
LOA:
54.92 ft / 16.74 m
LWL:
46.92 ft / 14.30 m
Beam:
15.42 ft / 4.70 m
S.A. (reported):
1,523.00 ft2 / 141.49 m2
Draft (max):
7.55 ft / 2.30 m
Displacement:
57,981 lb / 26,300 kg
Ballast:
21,495 lb / 9,750 kg
S.A./Disp.:
16.34
Bal./Disp.:
37.07
Disp./Len.:
250.59
Construction:
FG
Ballast Type:
Lead
First Built:
2006
Last Built:
2012
# Built:
44
Builder:
Hallberg-Rassy (SWE)
Designer:
German Frers

Auxiliary Power/Tanks (orig. equip.)

Make:
Volvo Penta
Model:
D4-180
Type:
Diesel
Fuel:
238 gals / 901 L

Sailboat Calculations

S.A./Disp.:
16.34
Bal./Disp.:
37.07
Disp./Len.:
250.59
Comfort Ratio:
47.56
Capsize Screening Formula:
1.60
S#:
2.11

Rig and Sail Particulars

I:
73.75 ft / 22.48 m
J:
20.31 ft / 6.19 m
P:
66.44 ft / 20.25 m
E:
23.29 ft / 7.10 m
S.A. Fore:
748.93 ft2 / 69.58 m2
S.A. Main:
773.69 ft2 / 71.88 m2
S.A. Total (100% Fore + Main Triangles)
1,522.63 ft2 / 141.46 m2
S.A./Disp. (calc.):
16.34
Est. Forestay Len.:
76.50 ft / 23.32 m
Mast Height from DWL:
80.38 ft / 24.50 m

Accommodations

Water:
272 gals / 1,030 L
