HANSE 355

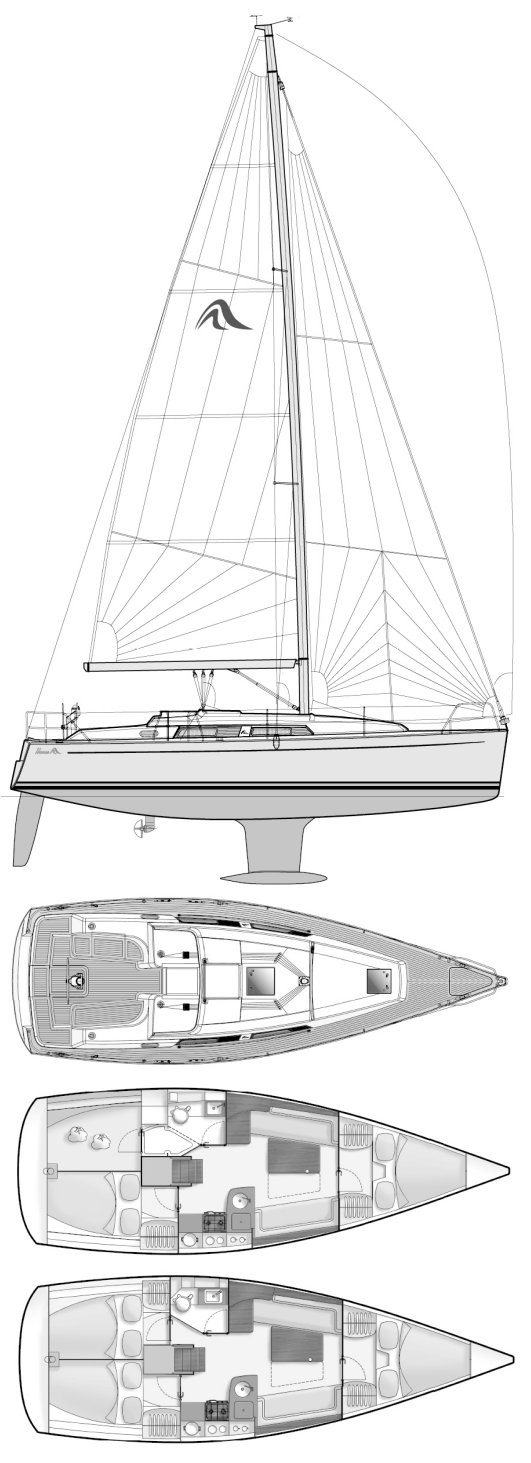

HANSE 355 drawing

Sailboat Specifications


Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
LOA:
34.74 ft / 10.59 m
LWL:
31.50 ft / 9.60 m
S.A. (reported):
634.00 ft2 / 58.90 m2
Beam:
11.65 ft / 3.55 m
Draft (max):
6.30 ft / 1.92 m
Draft (min):
Displacement:
14,021 lb / 6,360 kg
Ballast:
4,067 lb / 1,845 kg
S.A./Disp.:
17.51
Bal./Disp.:
29.01
Disp./Len.:
200.26
Construction:
FG
Ballast Type:
First Built:
2009
Last Built:
# Built:
Builder:
Hanse Yachts (GER)
Designer:
Judel/Vrolijk
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Model:
Type:
Diesel
HP:
18
Water:
63 gals.
Fuel:
24 gals.

Sailboat Calculations

S.A./Disp.:
17.51
Bal./Disp.:
29.01
Disp./Len.:
200.26
Comfort Ratio:
25.36

Rig and Sail Particulars

I:
46.26 ft / 14.10 m
J:
13.78 ft / 4.20 m
P:
43.24 ft / 13.18 m
E:
14.60 ft / 4.45 m
SPL/TPS:
ISP:
S.A. Fore:
318.73 ft2 / 29.61 m2
S.A. Main:
315.65 ft2 / 29.33 m2
S.A. Total (100% Fore + Main Triangles)
634.38 ft2 / 58.94 m2
S.A./Disp. (calc.):
17.52
Est. Forestay Len.:
48.27 ft / 14.71 m
Mast Height from DWL:
63.75 ft / 19.43 m

Sailboat Links

Builders:

Notes

Shallow draft: 1.52m/4.75(option)



.
