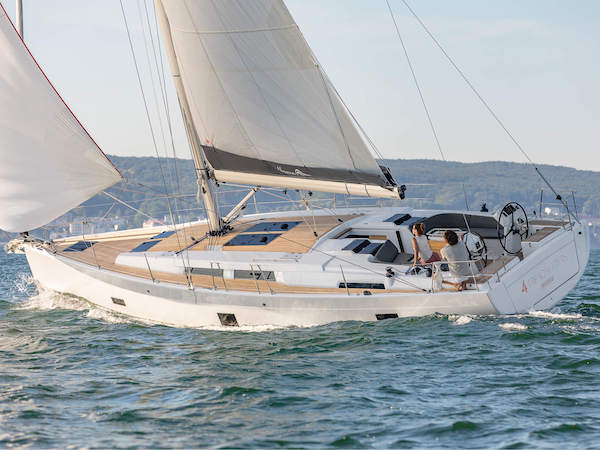

HANSE 458

Sailboat Specifications

both US imperial metric

Hull Type:

Fin w/bulb & spade rudder

Rigging Type:

Fractional Sloop

LOA:

46.06 ft / 14.04 m

LWL:

40.03 ft / 12.20 m

Beam:

14.37 ft / 4.38 m

S.A. (reported):

1,081.77 ft² / 100.50 m²

Draft (max):

7.32 ft / 2.23 m

Displacement:

25,794 lb / 11,700 kg

Ballast:

7,496 lb / 3,400 kg

S.A./Disp.:

19.91

Bal./Disp.:

29.06

Disp./Len.:

179.52

Construction:

GRP w/1st layer Vinylester resin

Ballast Type:

Cast iron

First Built:

2018

Builder:

Hanse Yachts

Designer:

Judel/Vrolijk & Co.

Auxiliary Power/Tanks (orig. equip.)

Type:

Diesel; Saildrive

HP:

57

Fuel:

55 gals / 210 L

Sailboat Calculations

Definitions

S.A./Disp.:

19.91

Bal./Disp.:

29.06

Disp./Len.:

179.52

Comfort Ratio:

27.39

Capsize Screening Formula:

1.95

S#:

3.29

Rig and Sail Particulars

help

I:

58.40 ft / 17.80 m

J:

18.04 ft / 5.50 m

P:

55.77 ft / 17.00 m

E:

19.52 ft / 5.95 m

S.A. Fore:

526.77 ft² / 48.94 m²

S.A. Main:

544.32 ft² / 50.57 m²

S.A. Total (100% Fore + Main Triangles)

1,071.08 ft² / 99.51 m²

S.A./Disp. (calc.):

19.71

Est. Forestay Len.:

61.12 ft / 18.63 m

Mast Height from DWL:

67.59 ft / 20.60 m

Accommodations

Water:

119 gals / 450 L

Sailboat Links

Designers:

Judel/Vrolijk & Co.

Builders:

Hanse Yachts

Download Boat Record:

PDF

Notes

Hull length: 13.55m / 44.42ft
Shallow keel: draft - 1.82m / 6ft; displacement - 12,100kg / 26,675 lbs; ballast 3,730 kg / 2,223 lbs
Optional engine: 80 hp
Ballast from test report in Yacht Mag (GER) June 26, 2019
