Sailboat Specifications

Definitions
Hull Type: Fin w/bulb & spade rudder
Rigging Type: Fractional Sloop
LOA: 53.22 ft / 16.22 m
LWL: 48.88 ft / 14.90 m
S.A. (reported): 1,464.97 ft² / 136.10 m²
Beam: 16.57 ft / 5.05 m
Displacement: 43,211.00 lb / 19,600 kg
Ballast: 14,110.00 lb / 6,400 kg
Max Draft: 8.37 ft / 2.55 m
Construction: GRP w/balsa sandwich
Ballast Type: Cast iron
First Built: 2017
Builder: Hanse Yachts
Designer: judel/vrolijk & co.

KLSC Leaderboard

KLSC Leaderboard

Auxiliary Power/Tanks (orig. equip.)

Type: Diesel; shaft drive
HP: 110
Fuel: 137 gals / 520 L

Accomodations

Water: 203 gals / 770 L

Sailboat Calculations

Definitions
S.A. / Displ.: 19.12
Bal. / Displ.: 32.65
Disp: / Len: 165.18
Comfort Ratio: 31.65
Capsize Screening Formula: 1.89
S#: 3.32
Hull Speed: 9.37 kn
Pounds/Inch Immersion: 2,894.01 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

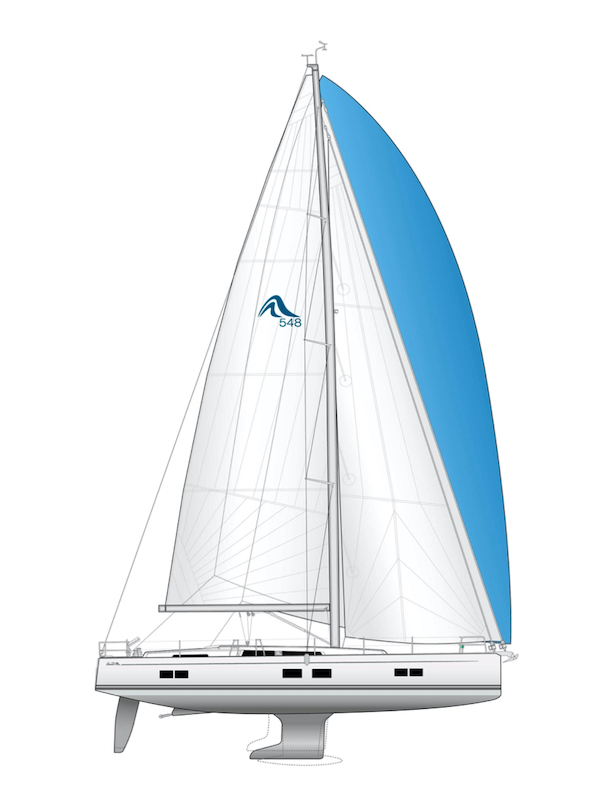

Rig and Sail Particulars

HELP
I: 68.90 ft / 21.00 m
J: 20.01 ft / 6.10 m
P: 67.59 ft / 20.60 m
E: 21.00 ft / 6.40 m
S.A. Fore: 689.34 ft² / 64.04 m²
S.A. Main: 709.70 ft² / 65.93 m²
S.A. Total (100% Fore + Main Triangles): 1,399.04 ft² / 129.98 m²
S.A./Displ. (calc.): 18.26
Est. Forestay Length: 71.75 ft / 21.87 m
Mast Height from DWL: 81.04 ft / 24.70 m

Sailboat Links

Designers: Judel/Vrolijk & Co.
Builders: Hanse Yachts
Download Boat Record:

Notes

Hull length: 15.75m / 51.67 ft
Specs above are for the standard L-keel
Shallow keel: draft - 2.2m / 7.25ft; displacement - 19,800 kg / 43,625 lbs
T-keel (deep): draft - 2.8m / 9.18 ft; displacement - 19,000 kg / 41,888 lbs
Ballast weight is from a test in Yacht Mag (GER), August 30, 2017
