HELIA 44

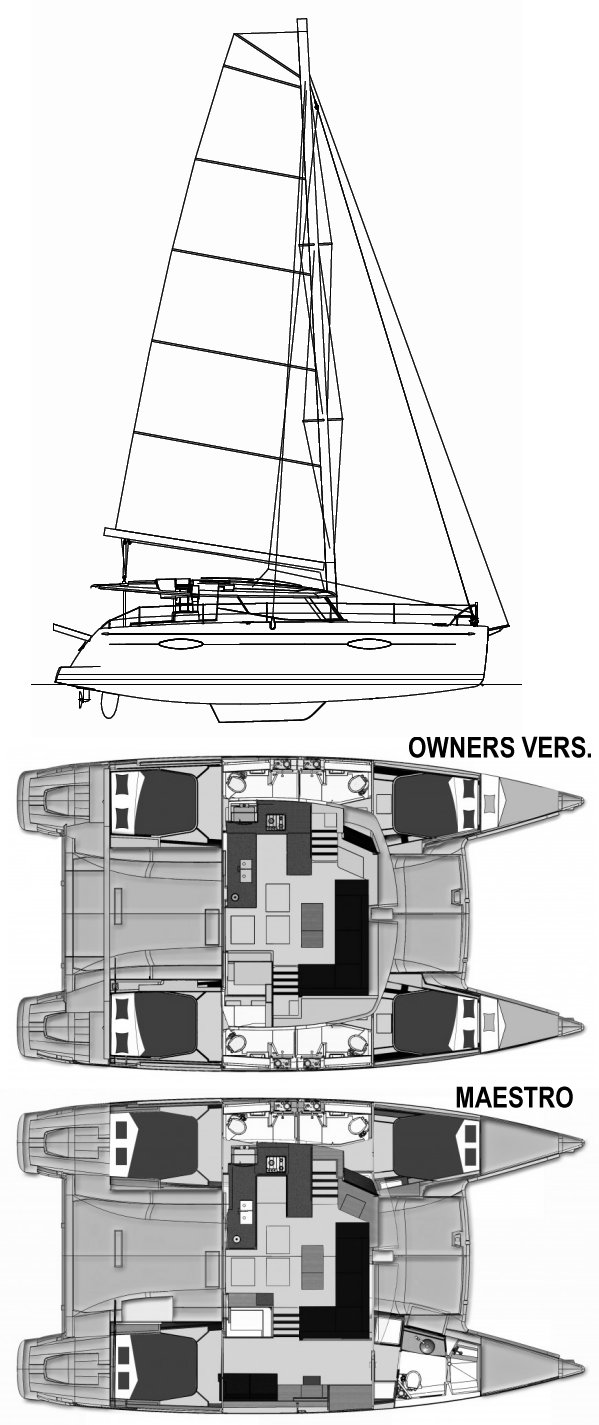

HELIA 44 photo HELIA 44 drawing

Sailboat Specifications


Hull Type:
Catamaran Twin Keel
Rigging Type:
Frac. Sloop (Rotating Spar)
LOA:
43.63 ft / 13.30 m
LWL:
S.A. (reported):
753.00 ft2 / 69.96 m2
Beam:
24.28 ft / 7.40 m
Draft (max):
3.77 ft / 1.15 m
Draft (min):
Displacement:
23,810 lb / 10,800 kg
Ballast:
S.A./Disp.:
14.61
Bal./Disp.:
Disp./Len.:
Construction:
FG infusion w/balsa & klegecell
Ballast Type:
First Built:
2012
Last Built:
# Built:
Builder:
Fountaine-Pajot (FRA)
Designer:
Berret Racoupeau
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Volvo
Model:
Type:
Diesel X 2
HP:
80
Water:
198 gals.
Fuel:
124 gals.

Sailboat Calculations

S.A./Disp.:
14.61
Bal./Disp.:
Disp./Len.:

Sailboat Links

Designers:
Builders:

Notes

Optional Power VOLVO 2 x 55 CV / 2 x 55 HP Maestro version 1 owner’s suite + 1 bathroom / 2 doubles cabins + 2 bathrooms Quatuor version 4 double cabins + 2 or 2 bathrooms



.
