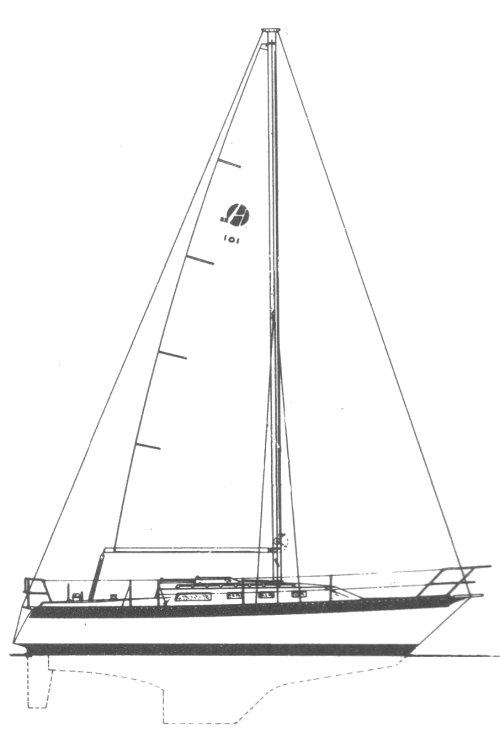

HELMS 32

Sailboat Specifications

both US imperial metric

Hull Type:

Fin w/spade rudder

Rigging Type:

Masthead Sloop

LOA:

32.00 ft / 9.75 m

LWL:

25.50 ft / 7.77 m

Beam:

10.50 ft / 3.20 m

S.A. (reported):

452.00 ft² / 41.99 m²

Draft (max):

4.83 ft / 1.47 m

Displacement:

9,500 lb / 4,309 kg

Ballast:

3,800 lb / 1,724 kg

S.A./Disp.:

16.18

Bal./Disp.:

40.00

Disp./Len.:

255.77

Construction:

FG

First Built:

1983

Last Built:

1985

# Built:

10

Builder:

Jack A. Helms Co. (USA)

Designer:

Stuart Windley

Auxiliary Power/Tanks (orig. equip.)

Make:

Yanmar

Model:

3GM30

Type:

Diesel

Fuel:

25 gals / 95 L

Sailboat Calculations

Definitions

S.A./Disp.:

16.18

Bal./Disp.:

40.00

Disp./Len.:

255.77

Comfort Ratio:

23.34

Capsize Screening Formula:

1.99

S#:

2.04

Rig and Sail Particulars

help

I:

40.00 ft / 12.19 m

J:

13.00 ft / 3.96 m

P:

35.00 ft / 10.67 m

E:

11.00 ft / 3.35 m

S.A. Fore:

260.00 ft² / 24.15 m²

S.A. Main:

192.50 ft² / 17.88 m²

S.A. Total (100% Fore + Main Triangles)

452.50 ft² / 42.04 m²

S.A./Disp. (calc.):

16.19

Est. Forestay Len.:

42.06 ft / 12.82 m

Accommodations

Water:

60 gals / 227 L
